PROZOR Digital to Analog Converter 192kHz DAC
prozor store
Delivery and Returns
1. US,UK,AU,DE,FR,IT,ES Free shipping over $50.
2. All products are sold 100% authentic.
3. 48 hours delivery, 5-10 working days can be delivered.
4. Free 30-day return and 18-month warranty.
5. Shipping area supported :US,UK,AU,CA,DE,AT,BE,CZ,FR,LU,NL,PL,DK,IT,ES
6. Note: If you need to purchase multiple pieces or cooperate, please contact us in advance.
Product Description
Specification:
| Support Audio Format | PCM |
| Signal-to-Noise Ratio | 105DB |
| Separating Degree(1KHZ) | 94DB |
| Response Frequency | 20Hz~20KHz -0.2db |
| THD+N | -90DB |
| Total Harmonic Distortion(THD) | 10Hz~20KHz 0.25-0.065% |
| Blocking Time | 0.577Fs |

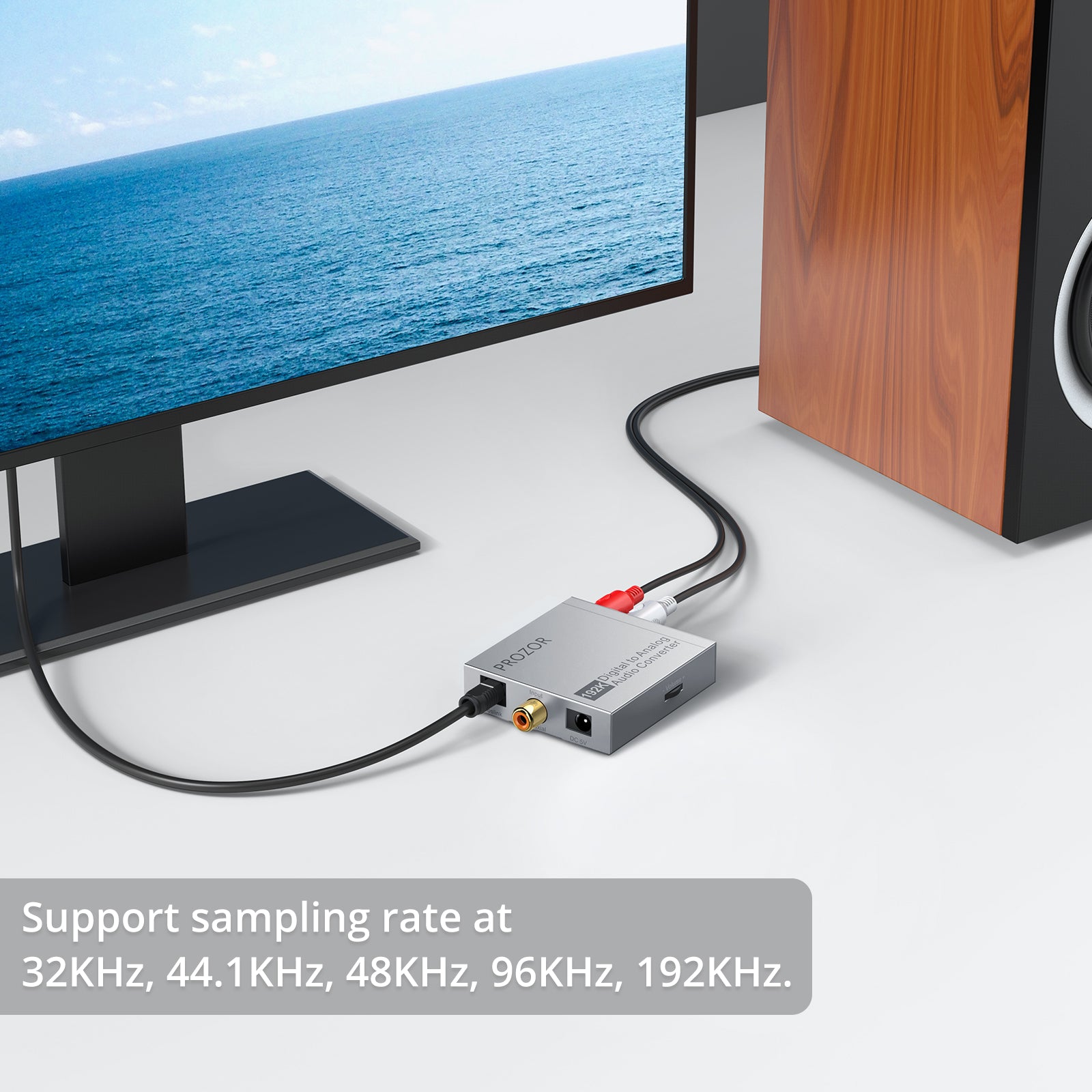

| Sampling Rate | 32~192 KHz |
| Bit Rate | 16~24 Bit |
| Output Electrical Level | 2.2V |
| Maximum Output Power | 0.3W |
| Earphone Output Power | 0-250mW |
| Output Impedance | 10 ohms |
| Working Voltage | +5V |
| Maximum Voltage | 6V |
| Maximum Power Consumption | 100mA |
| Operating Temperature Range | -10-70℃ |
| Storage Temperature Range | -60-150℃ |
| Operating Humidity Range | 10% - 80%RH(No Condensation) |
| Storage Humidity Range | 5- 90%RH(No Condensation) |

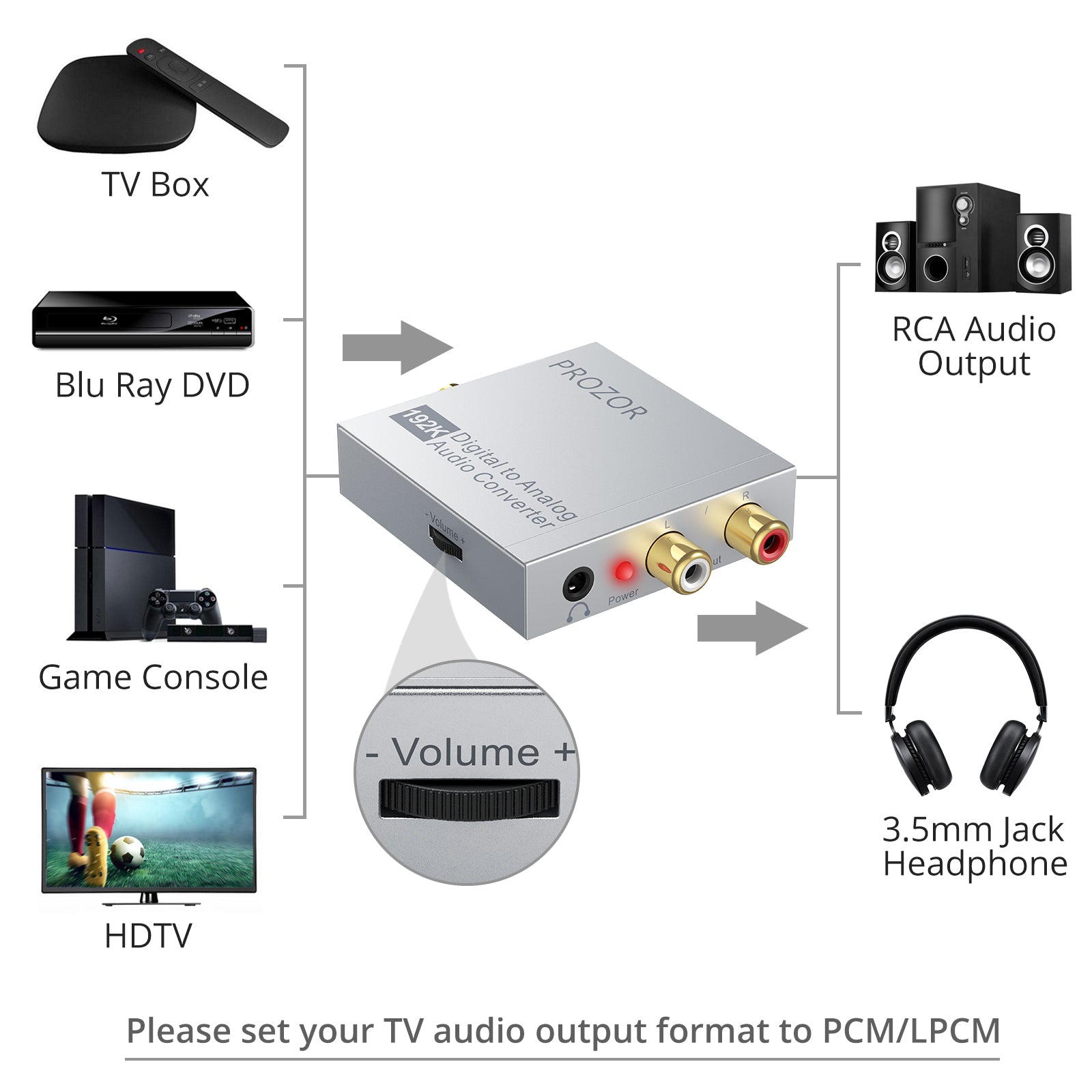

Connection: The optical interface on TV - PROZOR DAC - sound system.

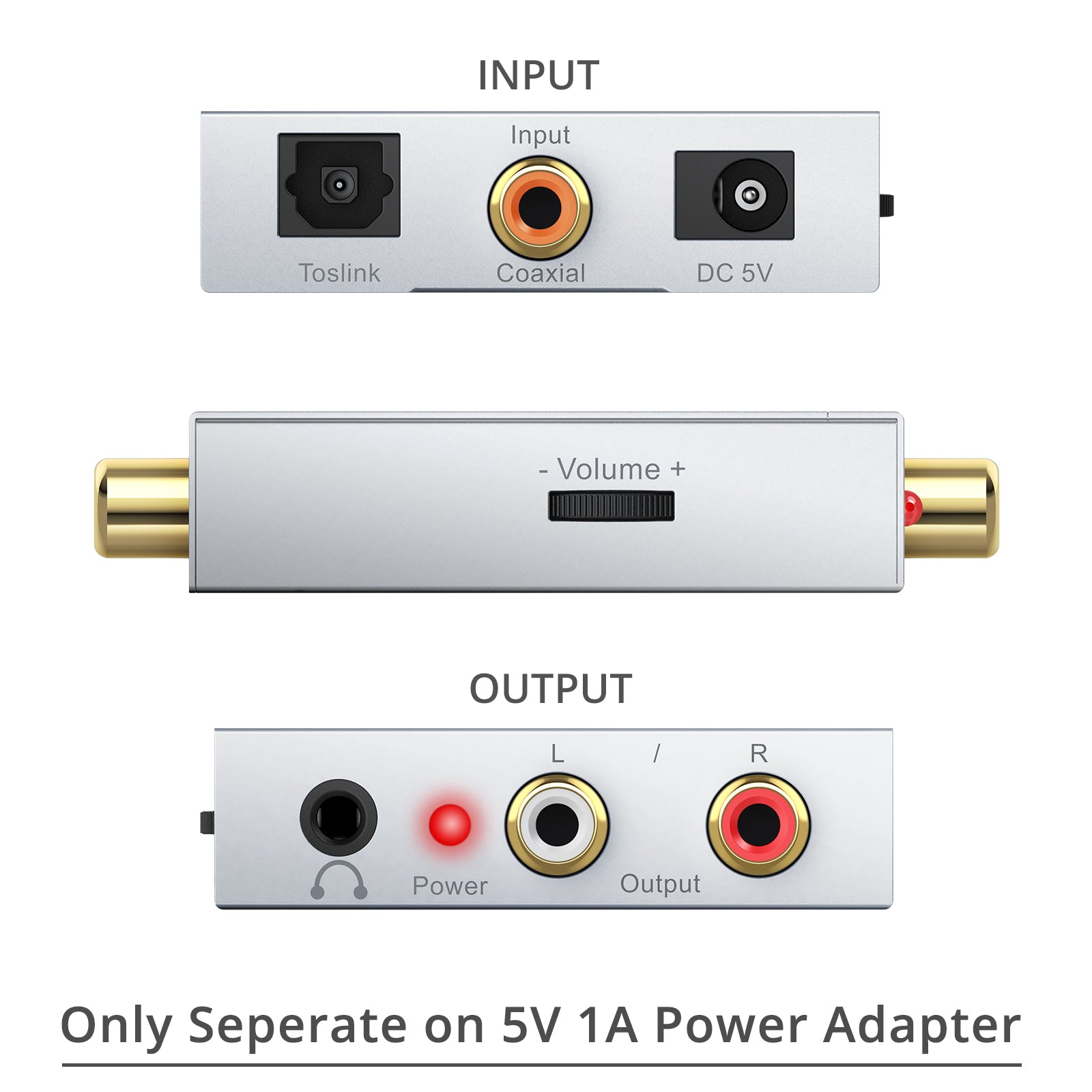

Input audio connector: 1 x Toslink, 1 x RCA (Coaxial).
Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack
Compared： In contrast, PROZOR 192KHz Digital to Analog Converter, high performance, fine workmanship, to meet your needs

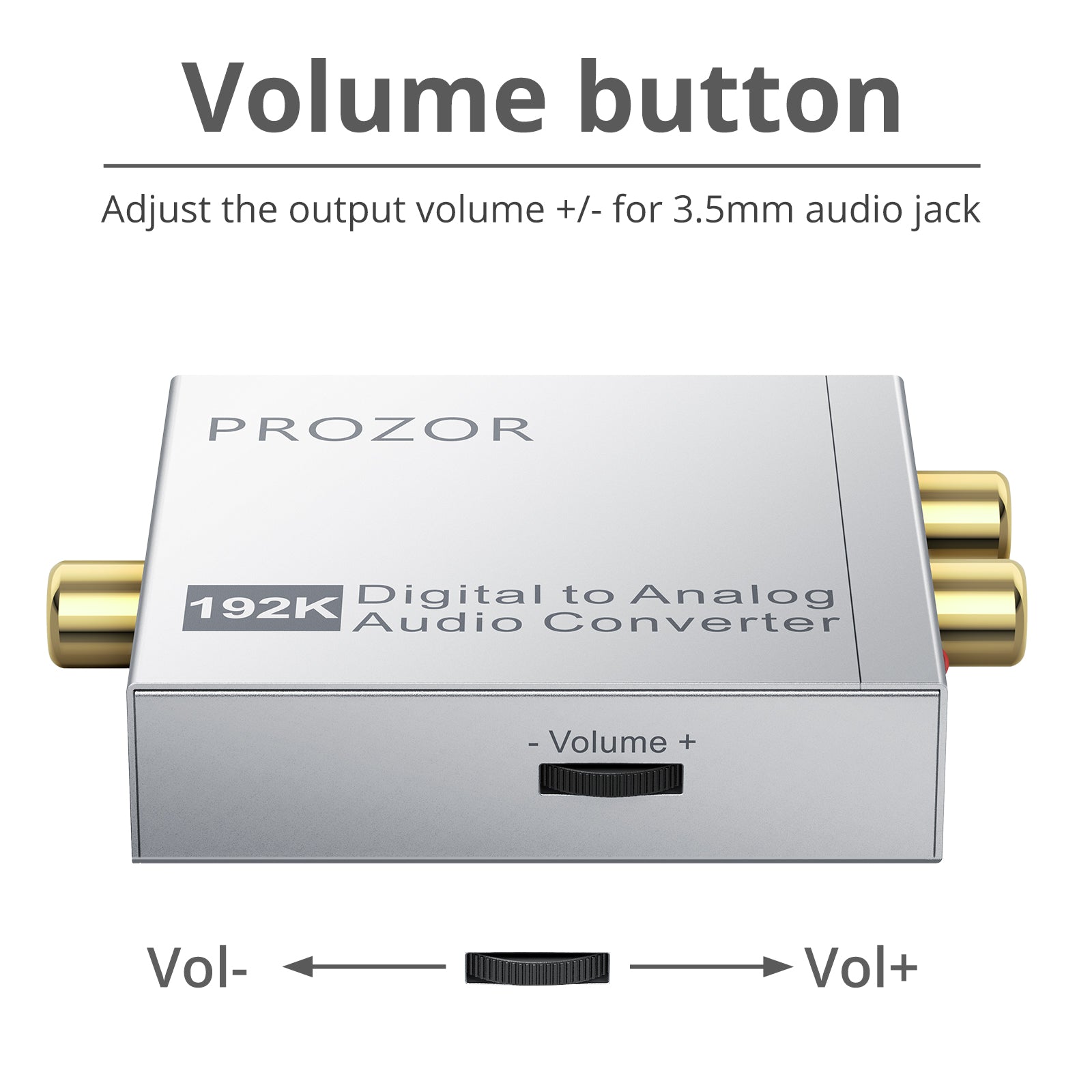

192kHz DAC Supports Volume Control Support volume adjustment. Functions similar to audio amplifiers.
Allows you to directly drive headphones and RCA and adjust the output volume.
Please don't use the volume up/down on the remote control to adjust the TV optical output volume.
Please adjust the TV optical output volume as follows (such as Sony): Settings → Sound Settings → Advanced Settings → All → Digital Audio Output Volume.

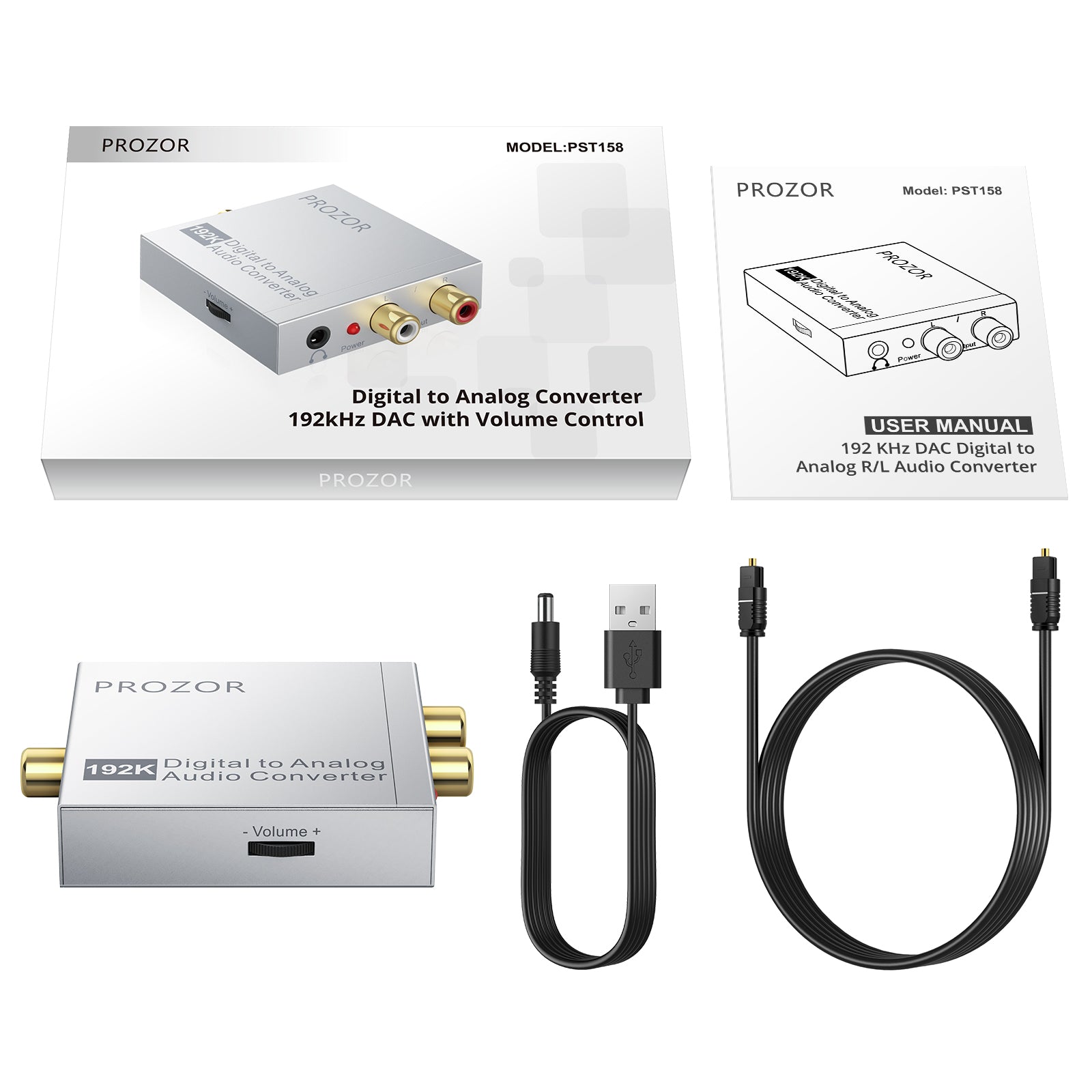

Package List
1* PROZOR digital to analog audio converter;
1* Toslink cable (Optical cable);
1* USB power cable;
1* User Manual.
