Product Description

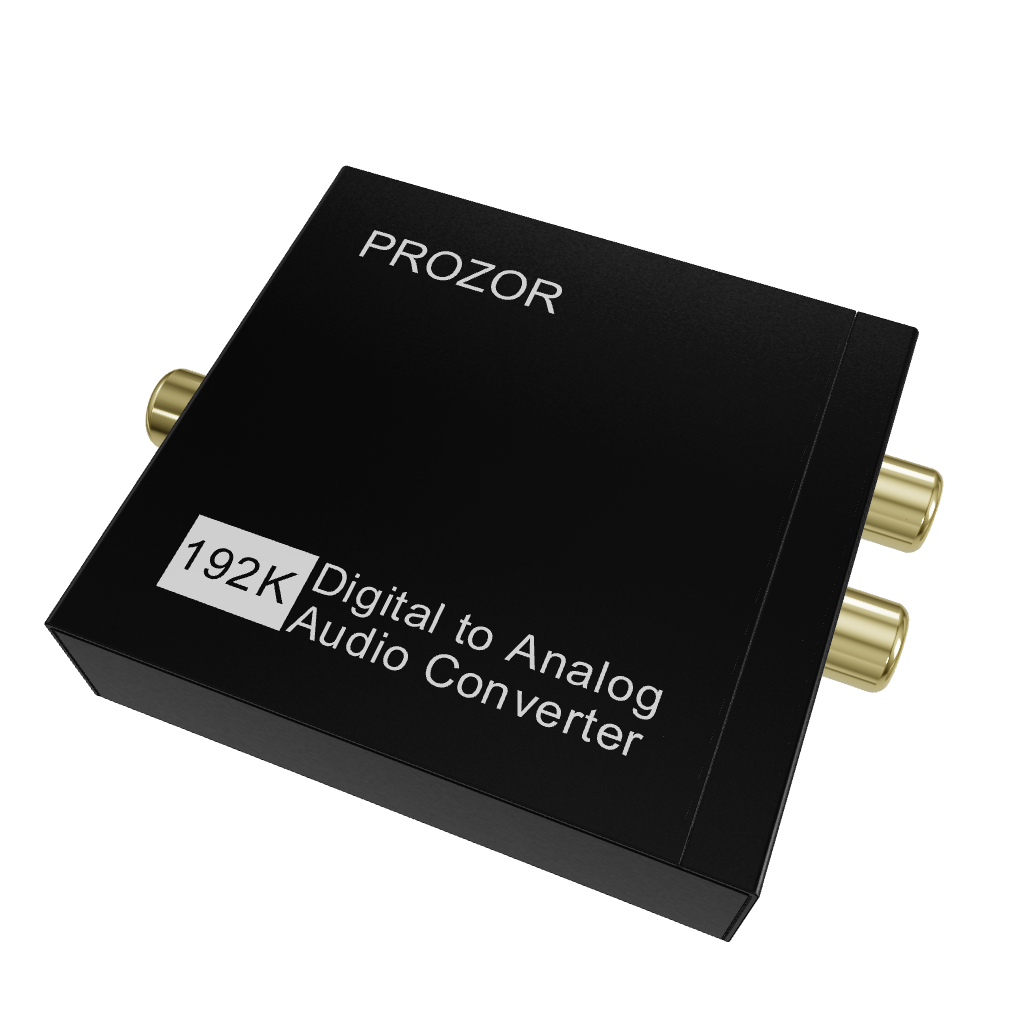

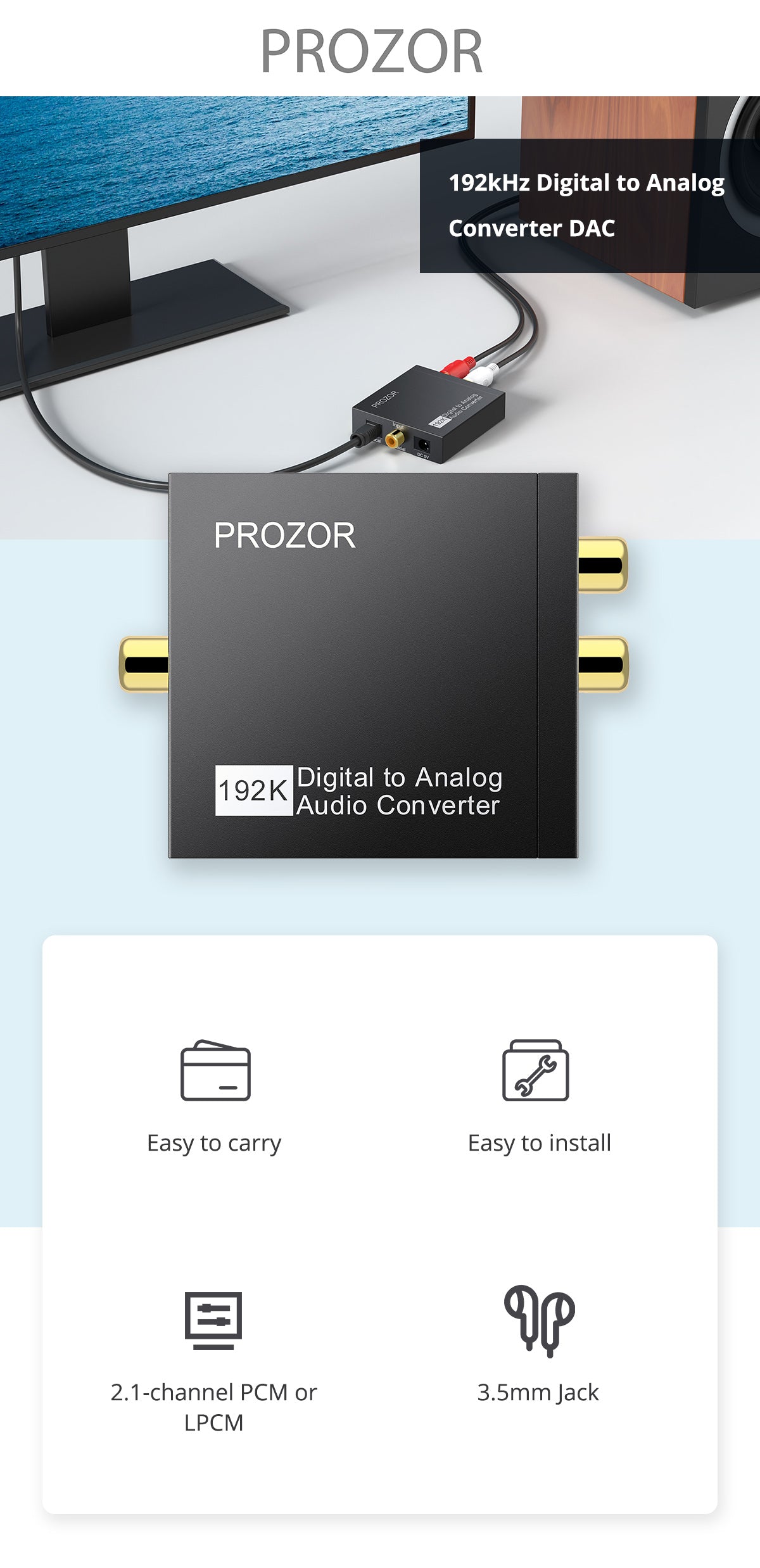

PROZOR 192kHz Digital to Analog Converter DAC

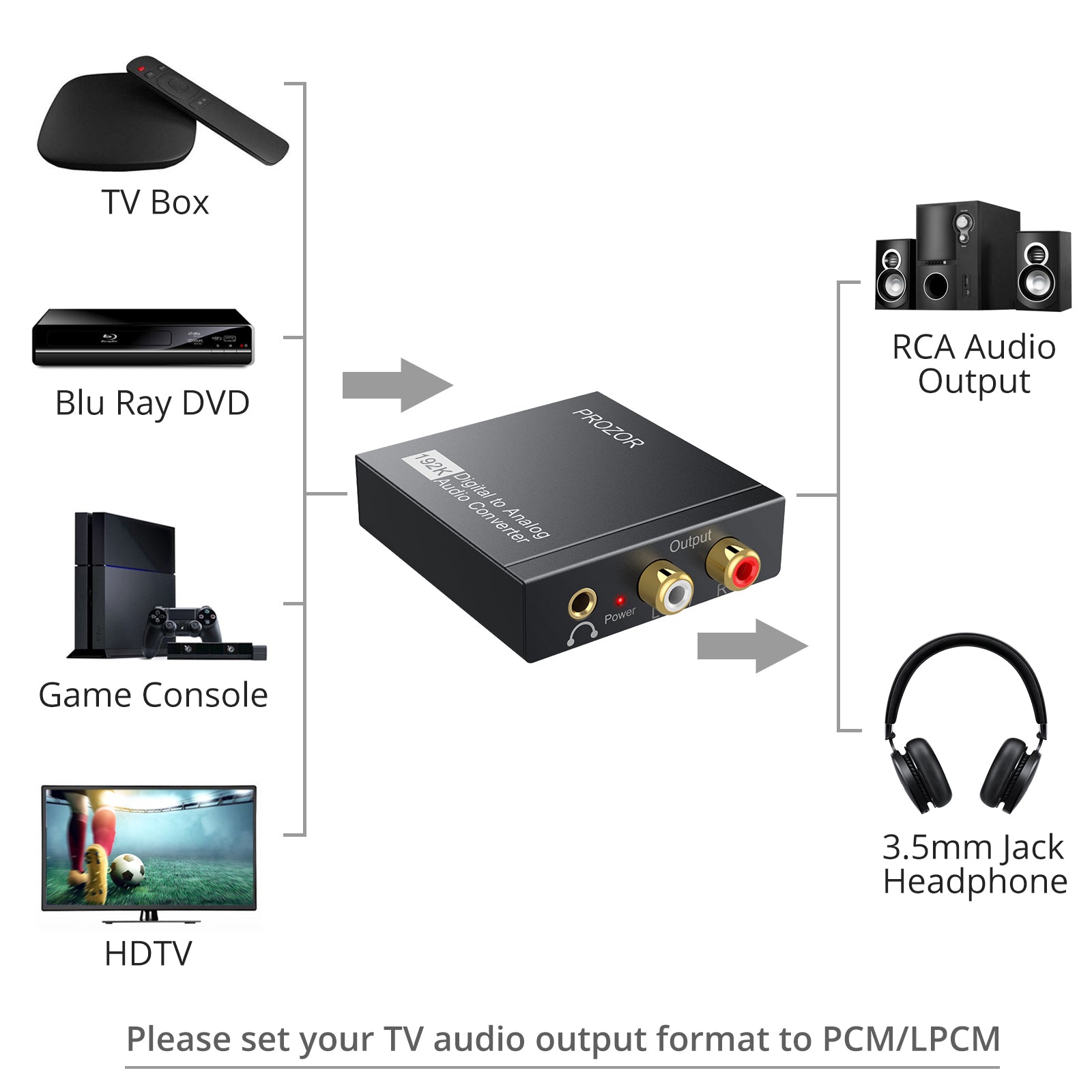

Please set your TV audio output to PCM / LPCM:

Device homepage--system setting--image and sound---voice setting--digital audio output--PCM/LPCM.

If Panasonic TV, please set TV audio output to SPDIF output.

If Samsung TV, please turn on its external speakers : menu - sound - speaker settings - external speakers - on.



Specifications:

 Support Audio Format  PCM
 Signal-to-Noise Ratio  105DB
 Separating Degree(1KHZ)  94DB
 Response Frequency  20Hz~20KHz -0.2db
 THD+N  -90DB
 Total Harmonic Distortion(THD)  10Hz~20KHz 0.25-0.065%
 Blocking Time  0.577Fs
 Sampling Rate  32~192 KHz
 Bit Rate  16~24 Bit
 Input Electrical Level  ± 0.3
 Output Electrical Level  3V
 Maximum Output Power  0.3W
 Earphone Output Power  0-250mW
 Output Impedance  10 ohms
 Working Voltage  +5V
 Maximum Voltage  9V
 Maximum Power Consumption  100mA
 Operating Temperature Range  -10-70℃
 Storage Temperature Range  -60-150℃
 Operating Humidity Range  10% - 80%RH(No Condensation)
 Storage Humidity Range  5- 90%RH(No Condensation)
 Bare weight  85g
 Shell material  Iron
Color  Black

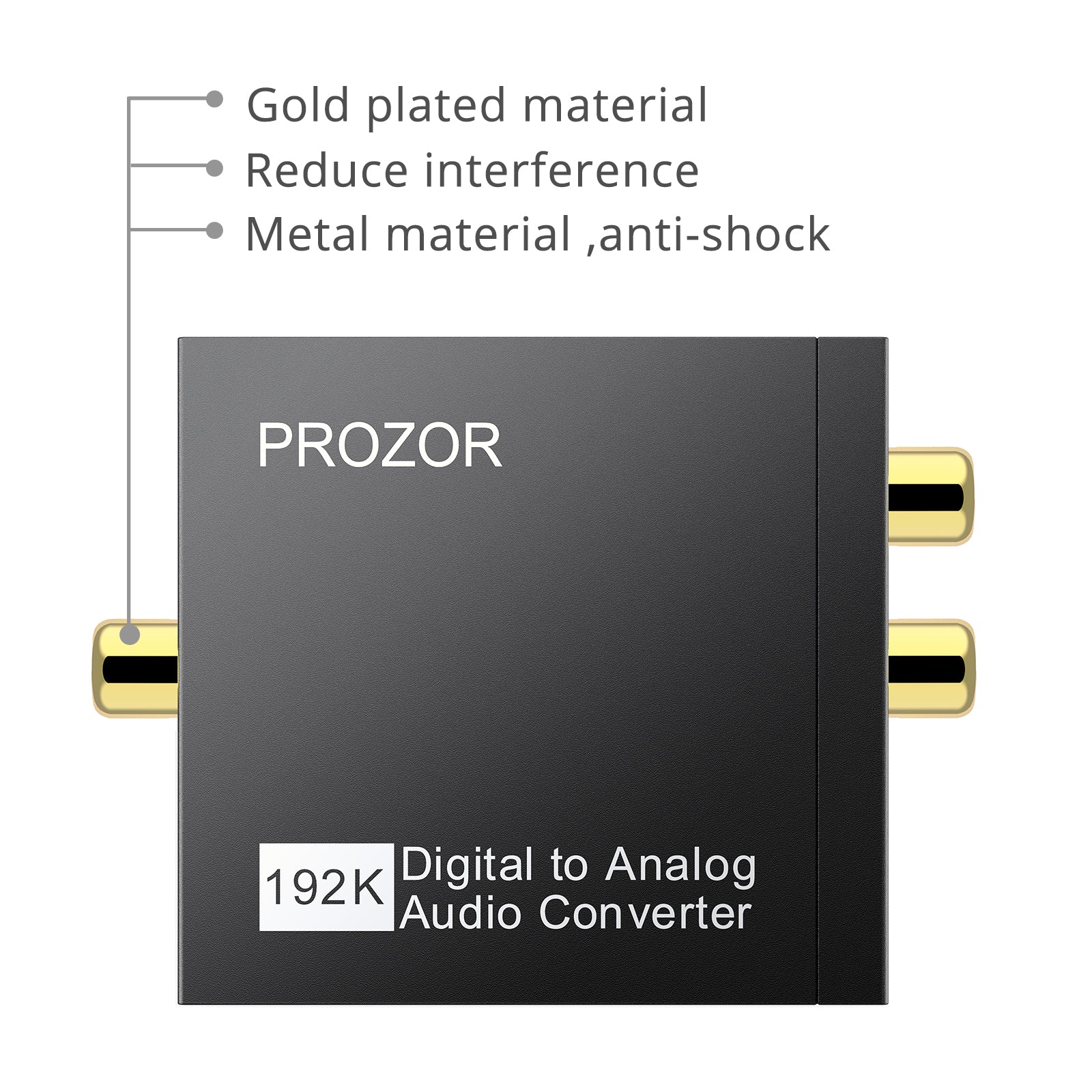

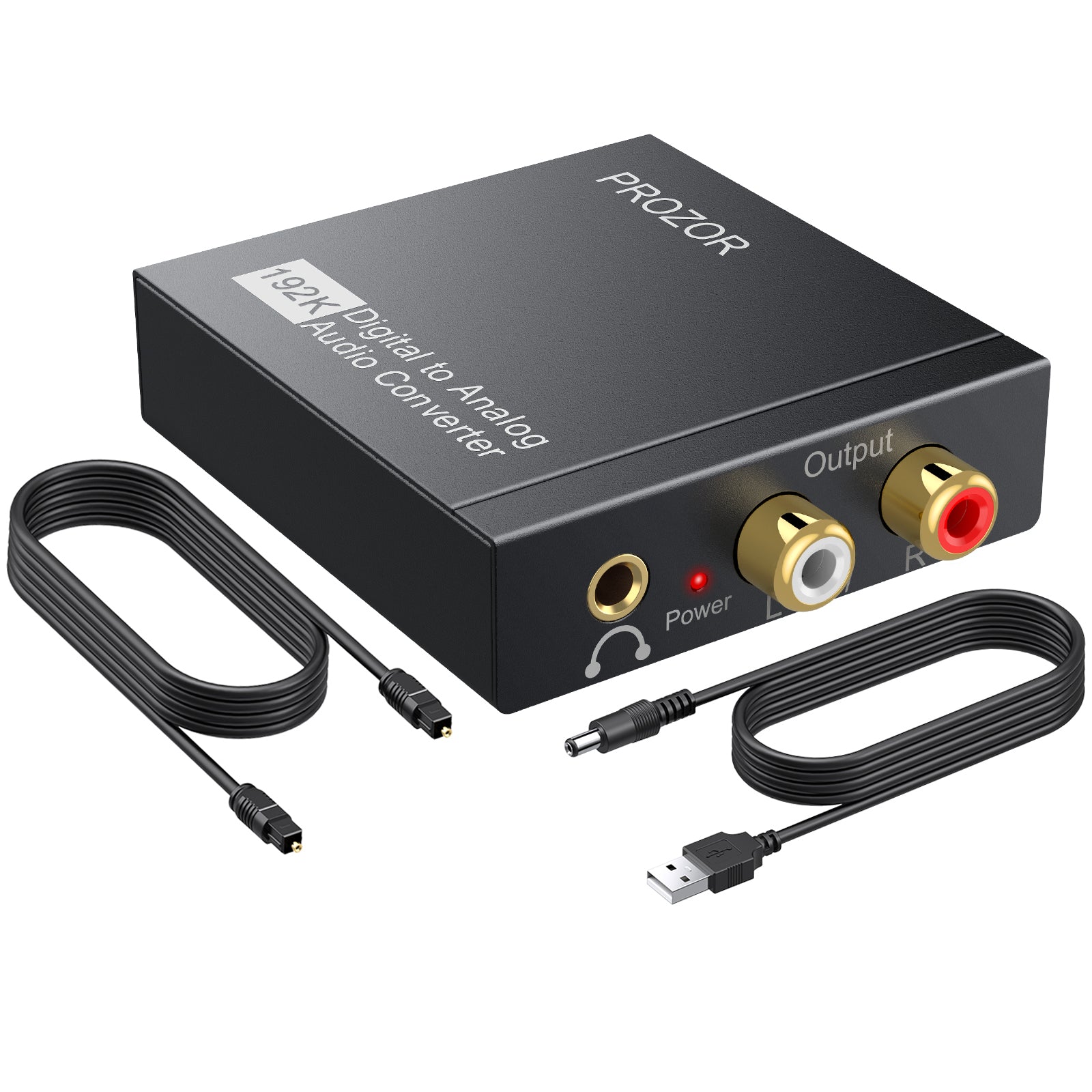

Gold-plated Interface

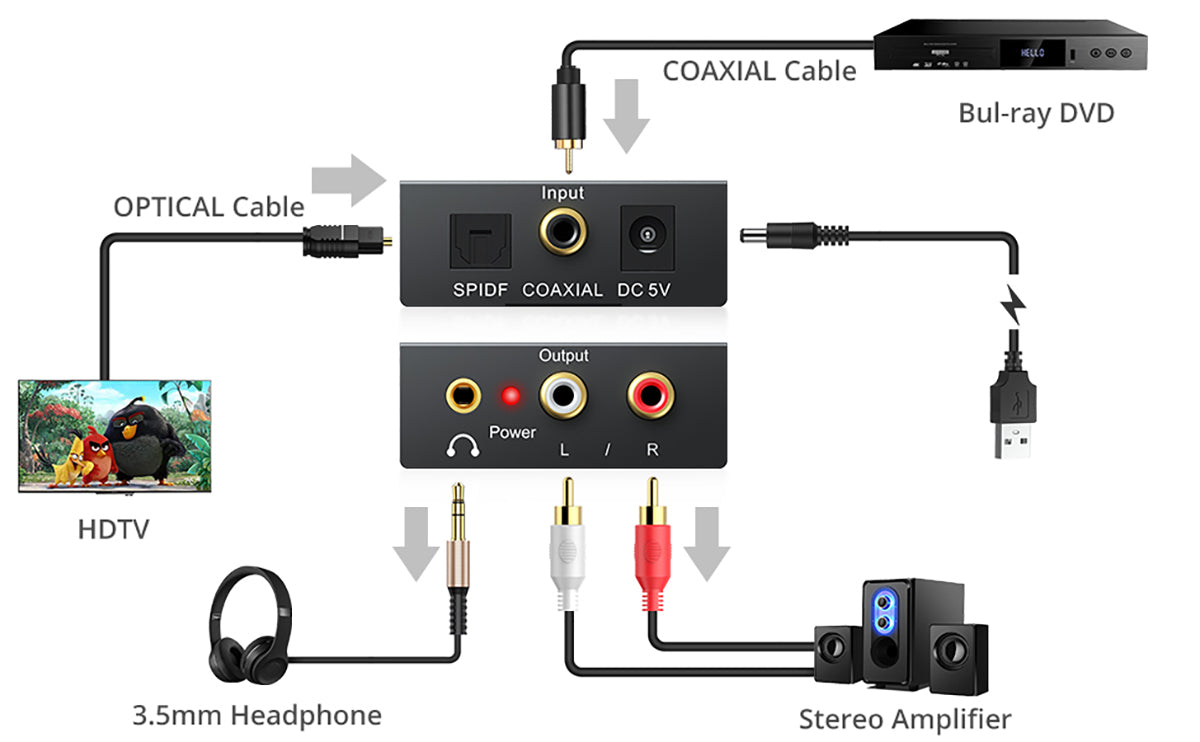

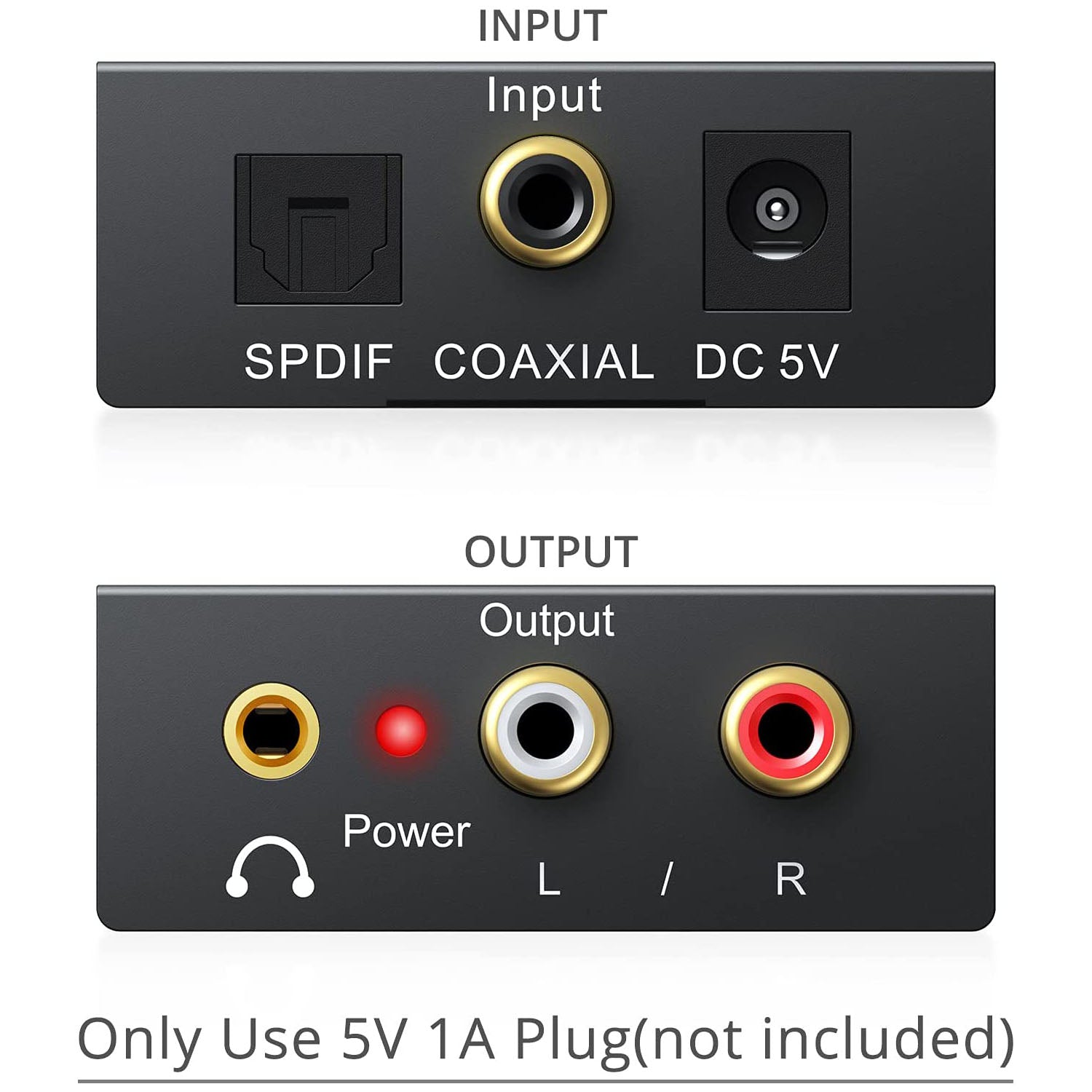

1. Input audio connector: 1 x Toslink, 1 x RCA (Coaxial).

2. Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack

3. Gold-plated Interface ensures better anti-shock and anti-interference

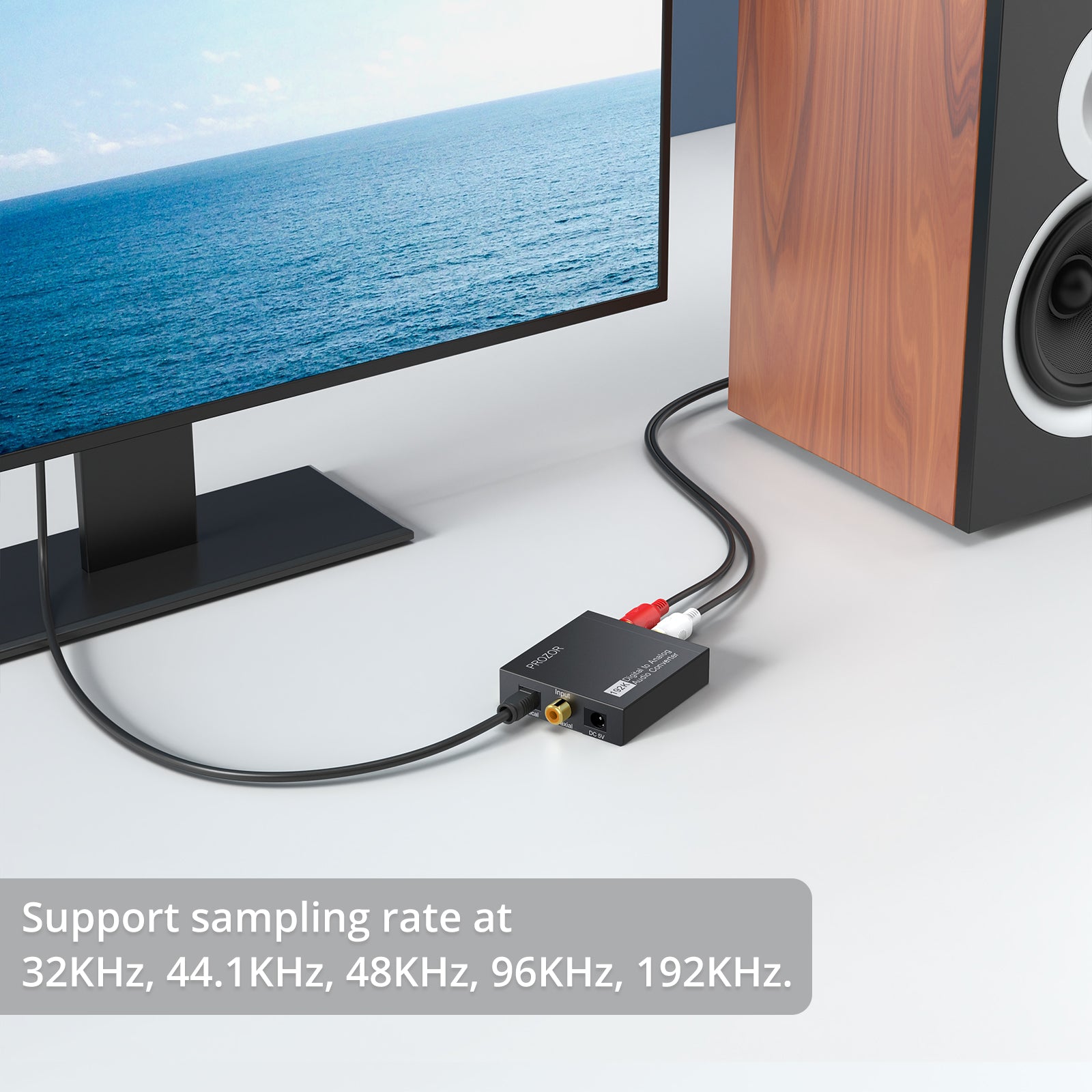

Sampling Rate up to 192kHz

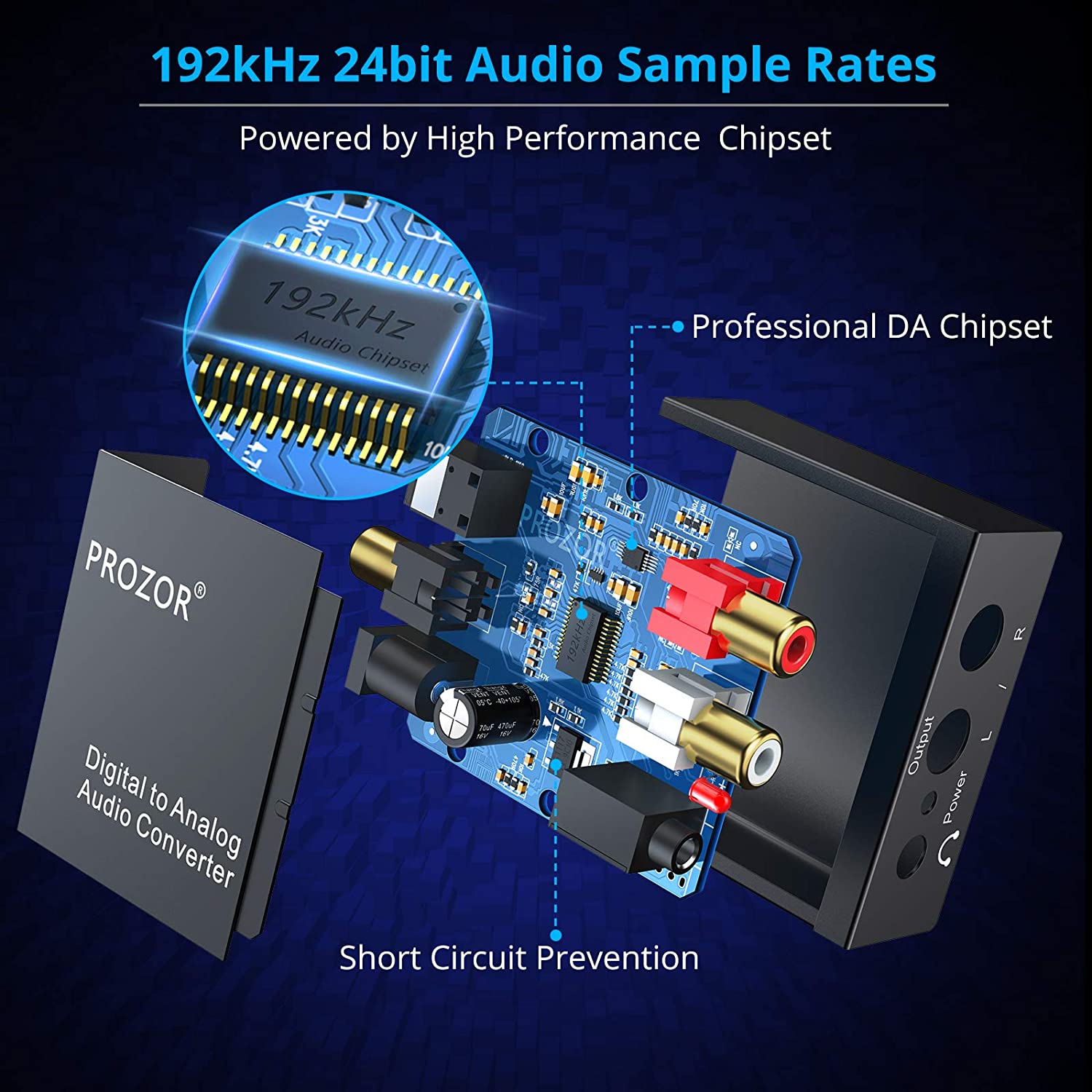

1. Adopt 24 bit 192kHz audio chipset, provide more real and pure sound.

2. Backward compatible with 96kHz, 48kHz, 44.1kHz, 32kHz.

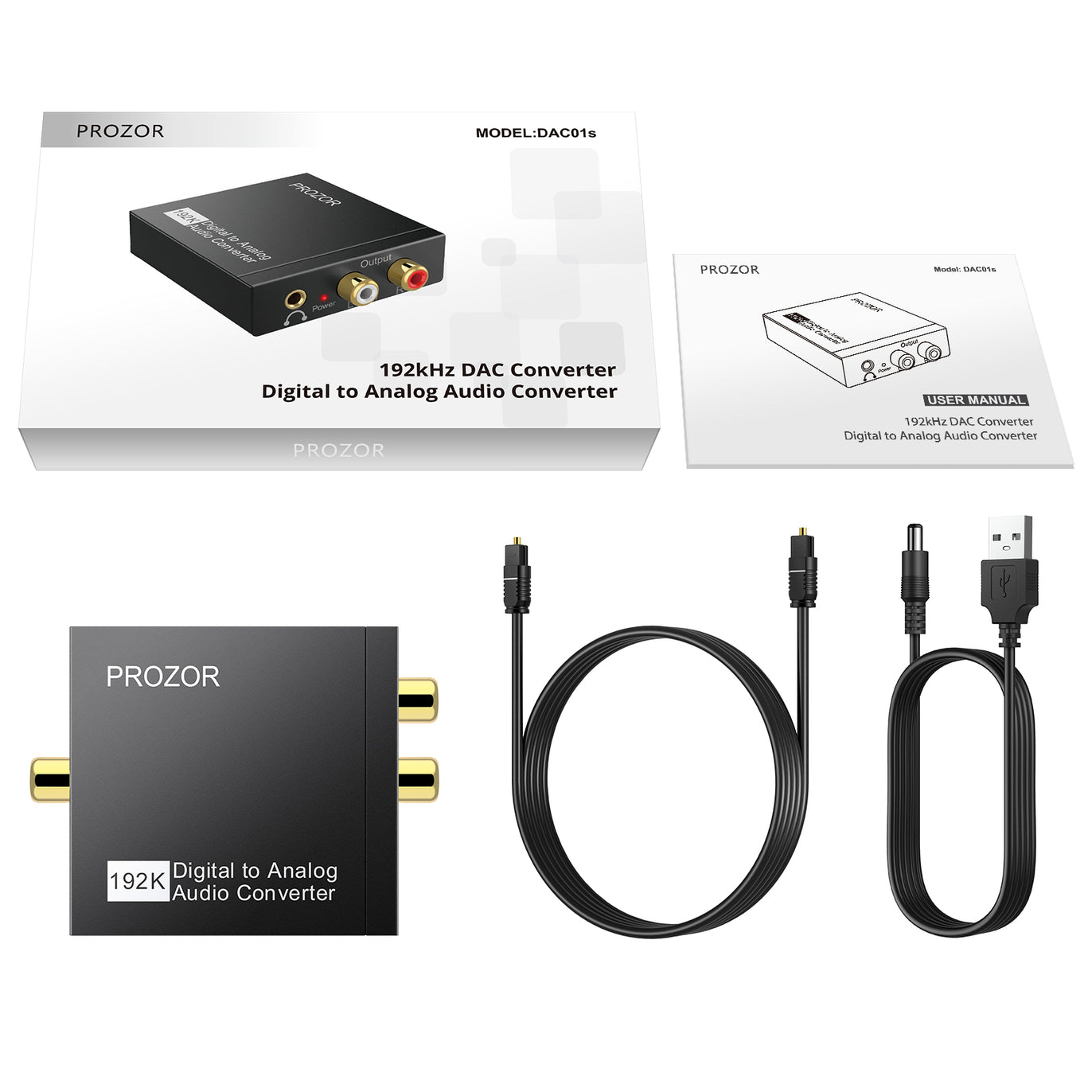

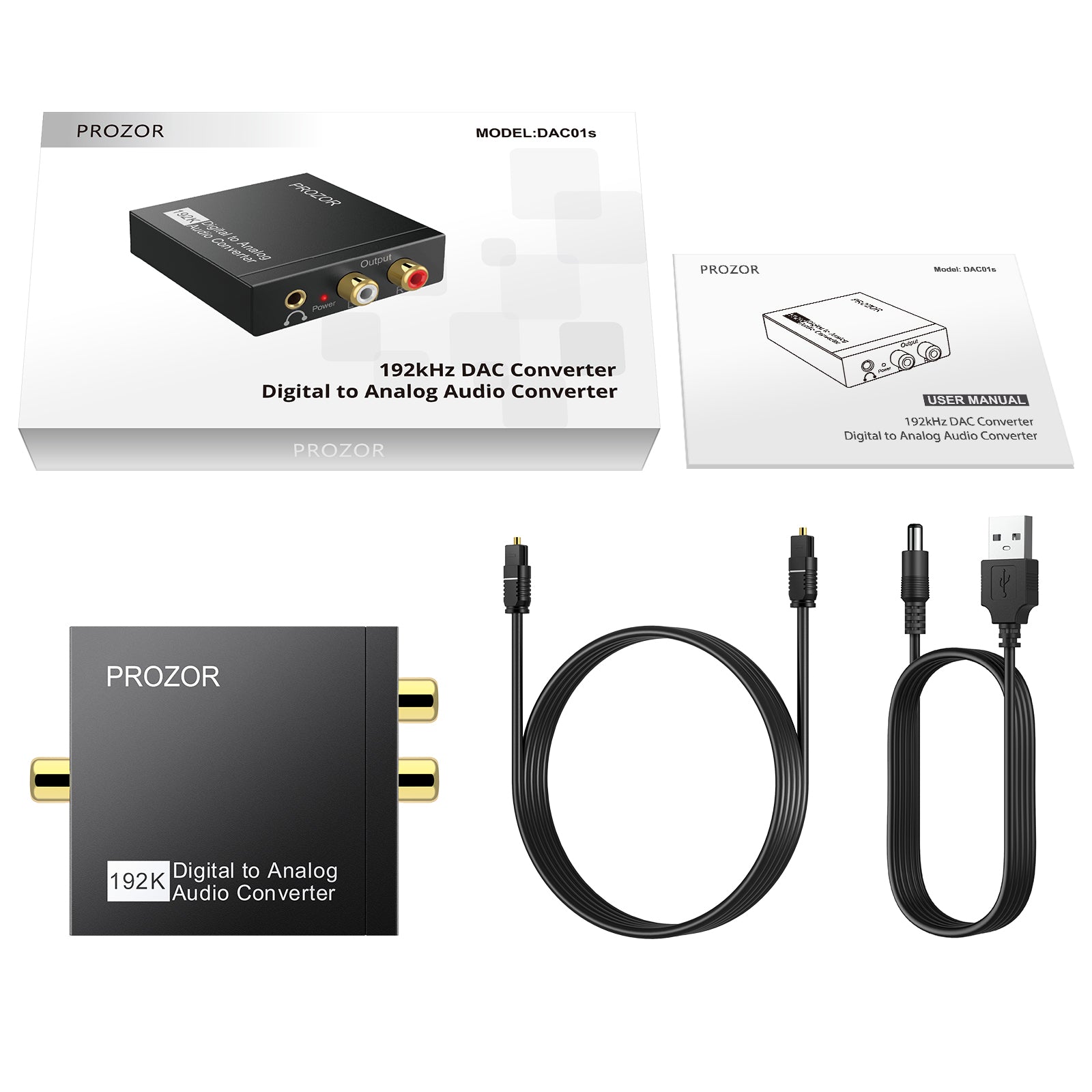

Package List

1* PROZOR digital to analog audio converter;

1* Toslink cable (Optical cable);

1* USB power cable;

1* User Manual.
