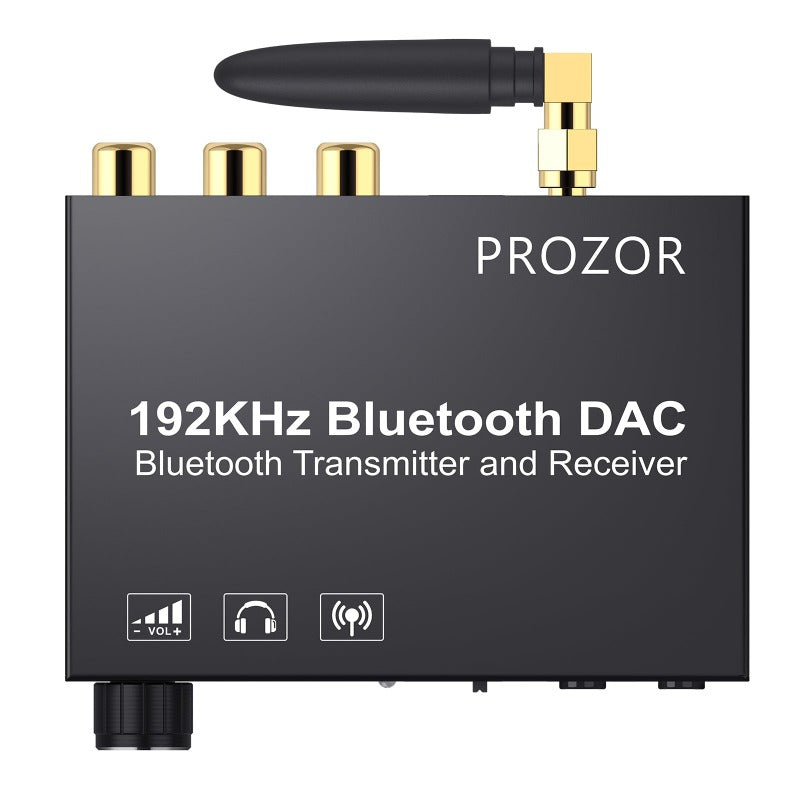

PROZOR 192kHz DAC with Bluetooth 5.0 Transmitter Receiver
prozor store
Delivery and Returns
1. US,UK,AU,DE,FR,IT,ES Free shipping over $50.
2. All products are sold 100% authentic.
3. 48 hours delivery, 5-10 working days can be delivered.
4. Free 30-day return and 18-month warranty.
5. Shipping area supported :US,UK,AU,CA,DE,AT,BE,CZ,FR,LU,NL,PL,DK,IT,ES
6. Note: If you need to purchase multiple pieces or cooperate, please contact us in advance.
Product Description
PROZOR 192kHz Digital to Analog Audio Converter with Bluetooth 5.0 Transmitter and Receiver

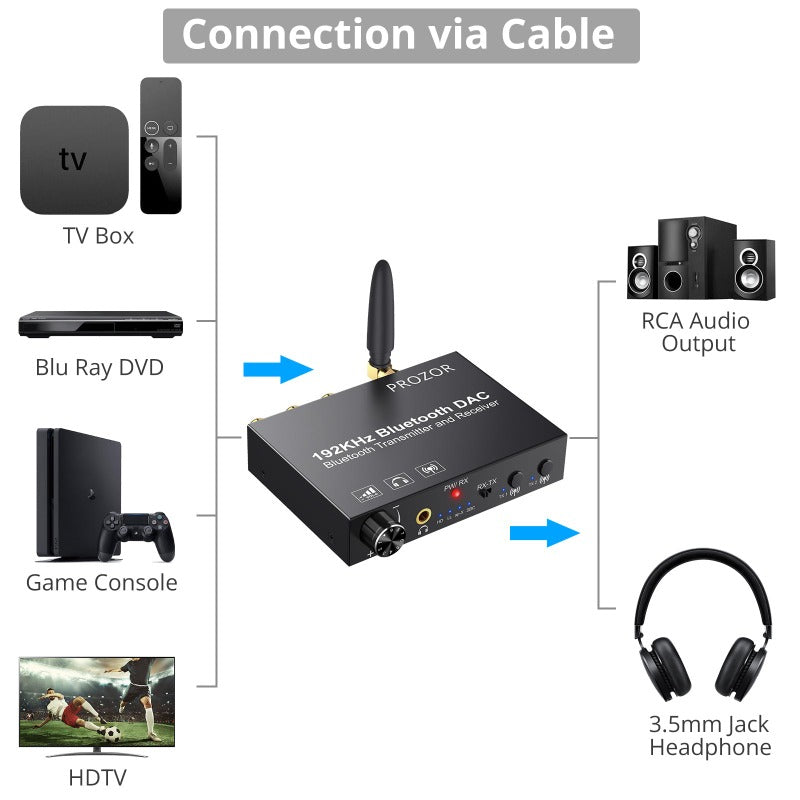

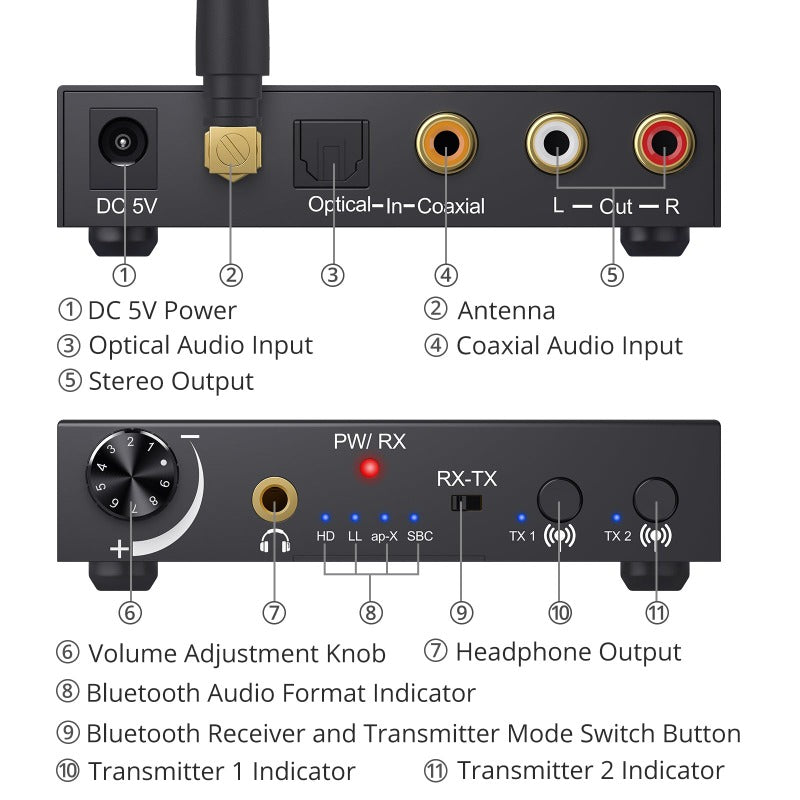

1. Under Bluetooth transmitter, RCA, 3.5 mm and Bluetooth port can output audio at the same time. Under Bluetooth receiver, RCA and 3.5 mm port can output audio at the same time. Built-in a volume control knob, Users can adjust the volume of RCA, 3.5 mm and the Bluetooth headphones.
2. If the Bluetooth is interrupted continuously, please check whether the antenna is fastened tightly. Please note that the antenna is made of plastic. You Can fasten it to avoid falling apart.
3. When using Bluetooth function, please keep your other electronic products away from the converter. It is normal that the Bluetooth will delay within 50ms.
4. Please set your TV's Audio Output to the PCM/LPCM Format. Not Supports 5.1 Channel Such As Dolby and DTS.
5. Not recommended for use with Musical Instruments.
6. Depending on the TV, the TV speaker may be muted when you plug the transmitter into its Optical audio output jack.
7. Support PS5.
Specifications:
| Optical/Coaxial Input Audio Formats | PCM |
| Audio Sample Rate | 32~192K/24bit |
| Bluetooth decoding format | aptX-LL, aptX-HD, aptX, sbc |
| Bluetooth Version | 5.0 Version |
| Bluetooth Protocol | A2DP, AVRCP |
| Bluetooth distance | ≤25m |
| RCA output maximum level | 9Vrms |
| 3.5mm audio interface maximum output level | 9Vrms |
| 3.5mm audio port maximum output power | 32Ω/35mW |
| Maximum working current | 5V/100mA |
| Working environment temperature | -10~+55°C |
| Storage environment temperature | -26~+60°C |
| Working environment humidity | 10~90%RH (no condensation) |
| Dimension | 90 x 81 x 19.5mm |
| Bare weight | 156g |
| Shell material | Metal |

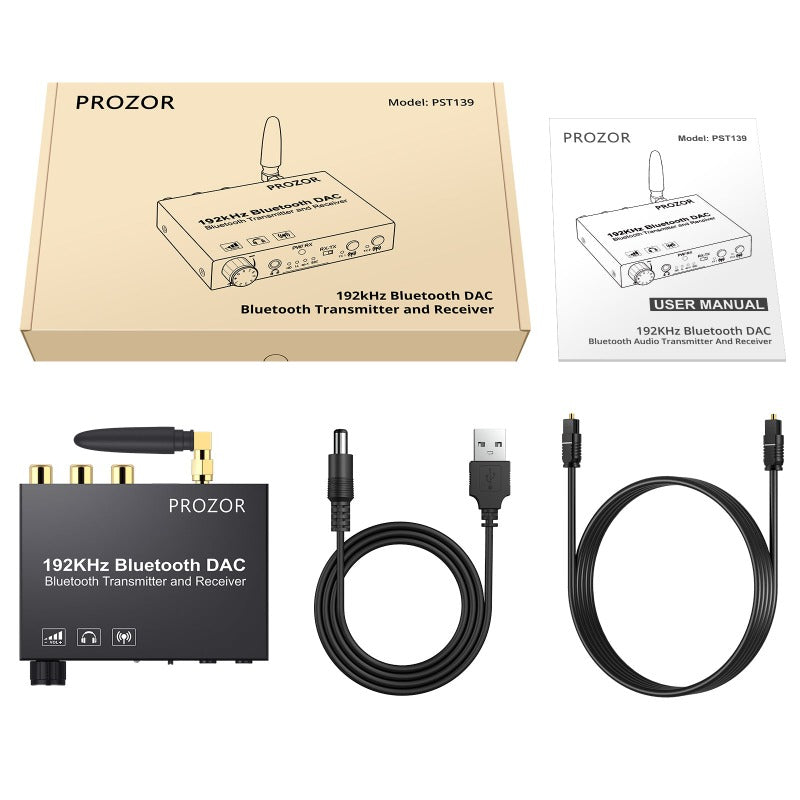

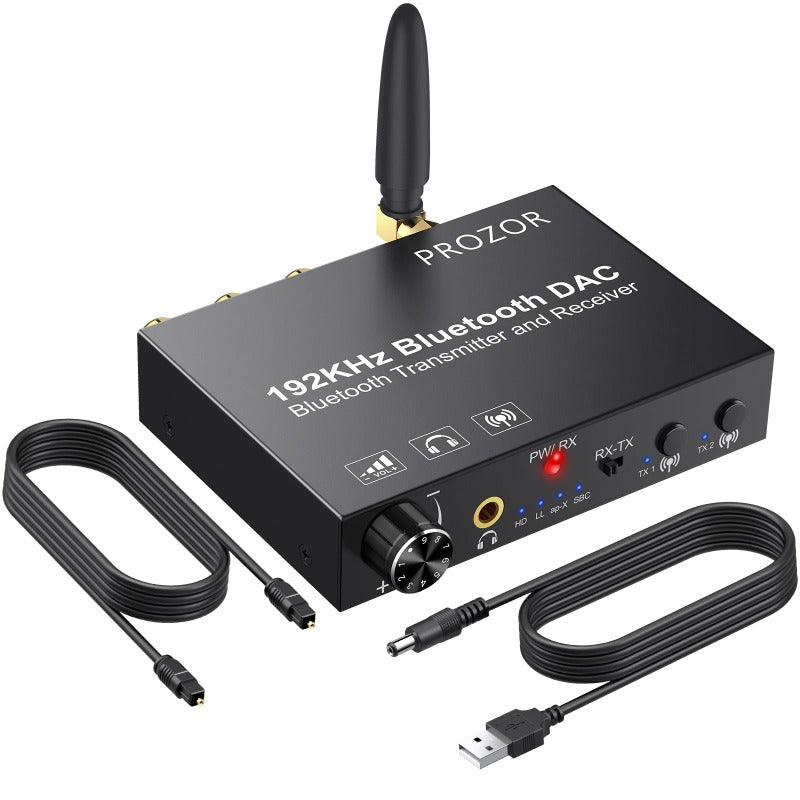

Package Include:
1 x 192KHz Optical to Analogue Converter with Transmitter and Receiver
1 x 1m(3ft) USB Power Cable
1 x 1m(3ft) Optical Cable
1 x Manual

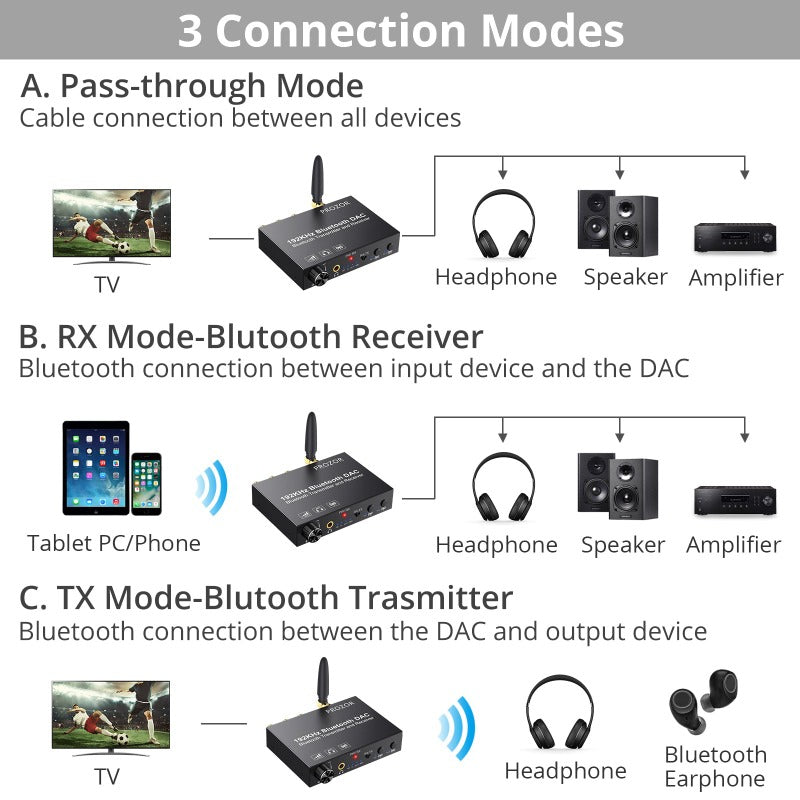

3 Connection Modes
Works as EITHER a transmitter or a receiver – NOT simultaneously.

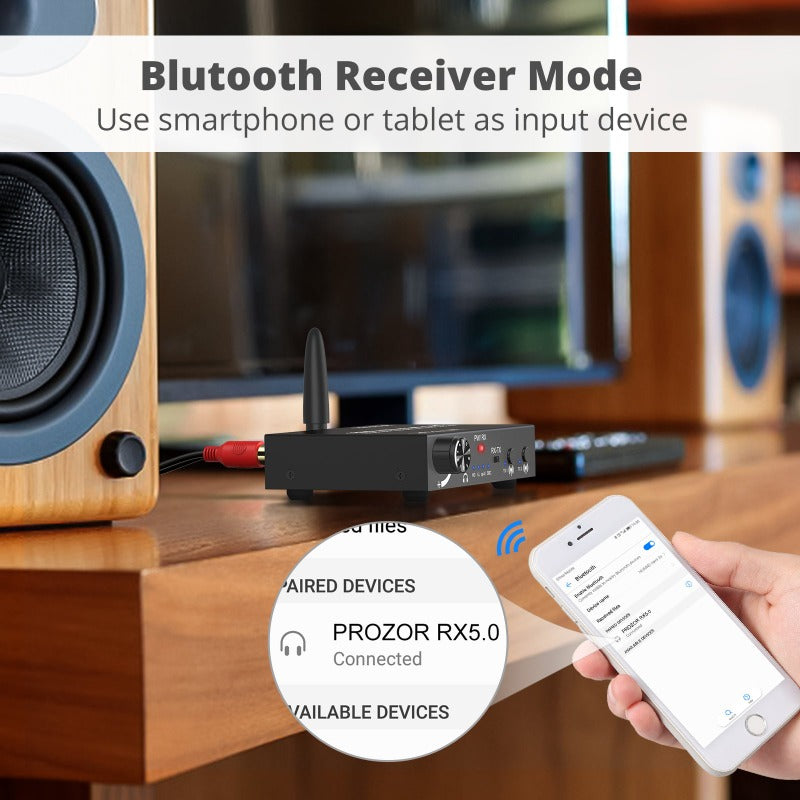

Bluetooth Receiver Mode
Please note that Under Bluetooth receiver, the Bluetooth connection will overrides the optical and coaxial connection. Please disconnect the Bluetooth source devices when you want to use the other two input interface. We are on our way to upgrade our products.
Bluetooth Transmitter
This Bluetooth DAC is tested that it can re-pair with Bluetooth devices when using at the second time.
Please try to hold on TX1 or TX2 button for 4 seconds to clear pairing record when you fail to connect the headphones.
