PROZOR Digital to Analog Audio Converter Support Dolby/DTS Decoder
prozor store
Delivery and Returns
1. US,UK,AU,DE,FR,IT,ES Free shipping over $50.
2. All products are sold 100% authentic.
3. 48 hours delivery, 5-10 working days can be delivered.
4. Free 30-day return and 18-month warranty.
5. Shipping area supported :US,UK,AU,CA,DE,AT,BE,CZ,FR,LU,NL,PL,DK,IT,ES
6. Note: If you need to purchase multiple pieces or cooperate, please contact us in advance.
Product Description
- Digital fiber coaxial to analog digital conversion mode volume adjustment, support DTS Dolby AC3 5.1 channel audio decoding.
- High-performance decoding of new chips and DACs, basically no volume loss, can adjust the volume, can improve the sound quality.
- Support button to adjust the volume (20-level fine-tuning), support the DIP switch to switch the fiber or coaxial input mode.

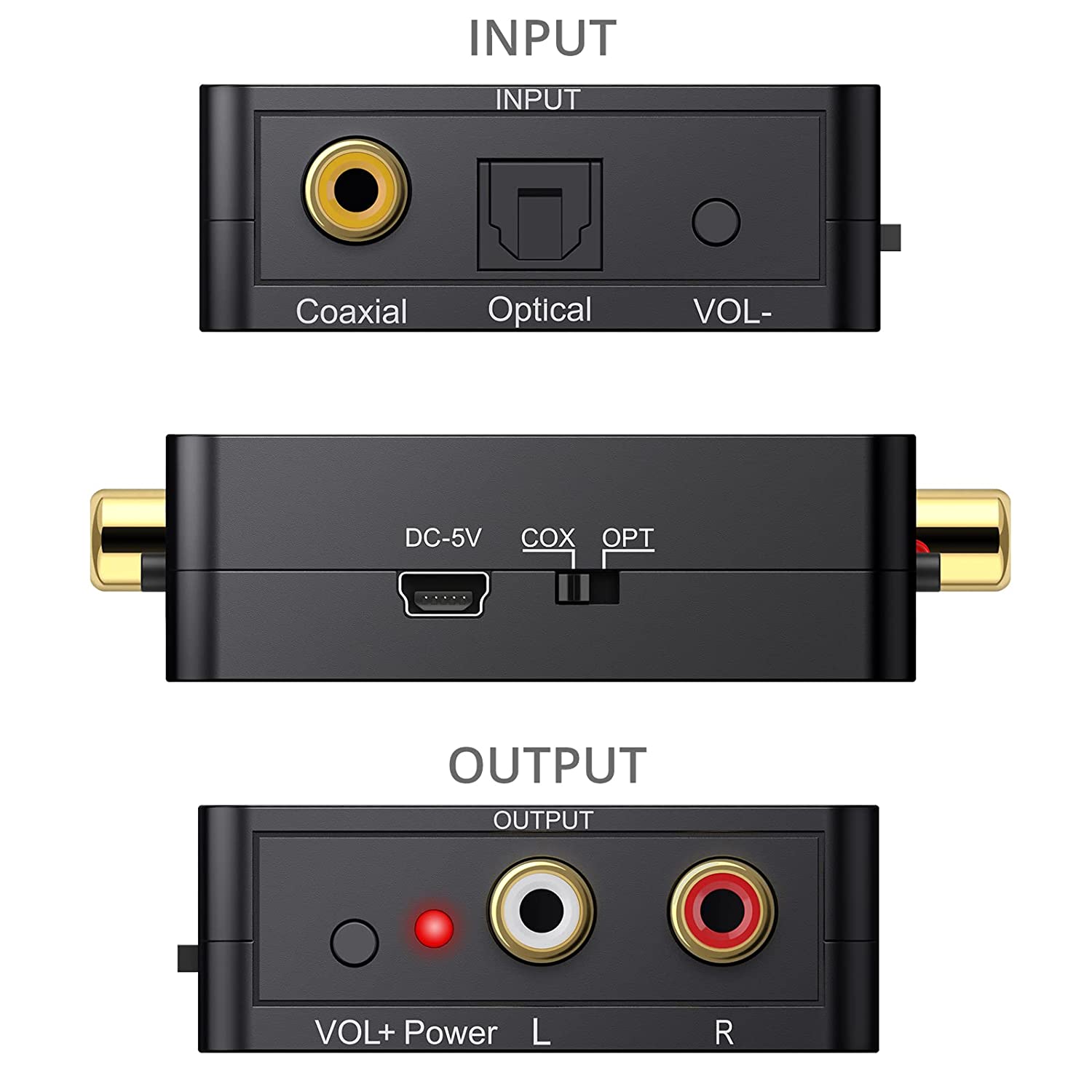

- Input coaxial port and output R/L port, good contact and no noise.
Specification:
| DSP sample frequency range | 24b~192 KHz |
| DSP Bit rate range | 16~24 Bit |
| Analog output level(1kHz@0dB) | ≥1.5V RMS |
| SNR @ 0dB(CCIR/ARM) | ≥90dB |
| Frequency response | 20Hz~20KHz |
| Max working current | 200mA |
| Power adapter format Input | DC-5V/500mA |
| Operating Temperature range | -10 to +60℃ |
| Storage Temperature range | -20 to +60℃ |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Storage Humidity range | 5 to 95%RH (No Condensation) |

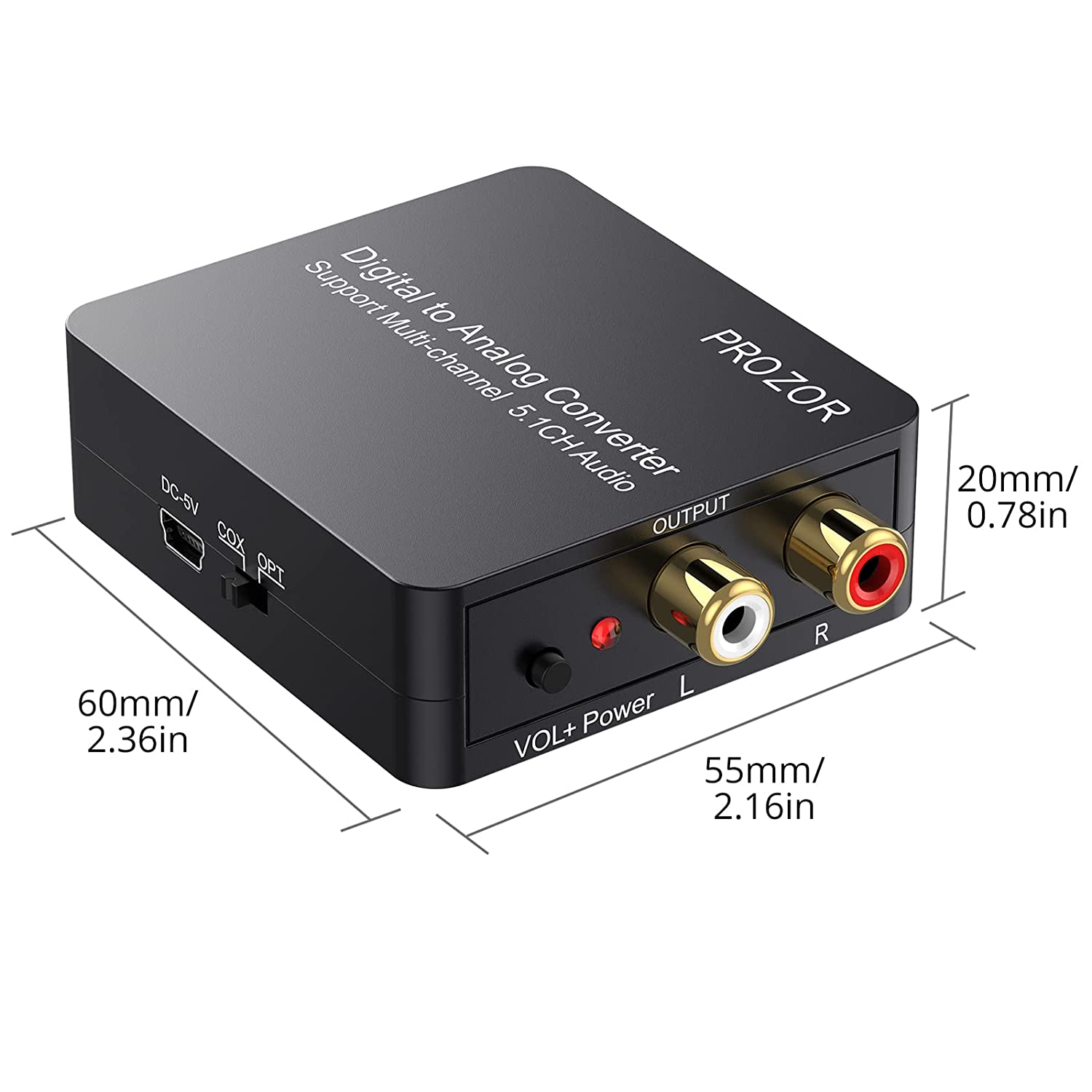

| roduct (L x W x H) | 72x55x20 (mm) |
| Product Weight | 40g |
| Working Voltage | +5V |
| Maximum Voltage | 6V |
| Maximum Power Consumption | 100mA |
| Operating Temperature Range | -10-70℃ |
| Storage Temperature Range | -60-150℃ |
| Operating Humidity Range | 10% - 80%RH(No Condensation) |
| Storage Humidity Range | 5- 90%RH(No Condensation) |
Connection:
Before installation,please make sure all devices you wish to connect have been turned off.
- Connect the audio source device to the converter using appropriate Toslink or Coaxial cables.
- Connect the AV receivers or Amplifiers to the converter using appropriate R/L cable.
- Package material Audio Connector-2 x RCA Male/1 x 3.5mm Stereo Female
Application:

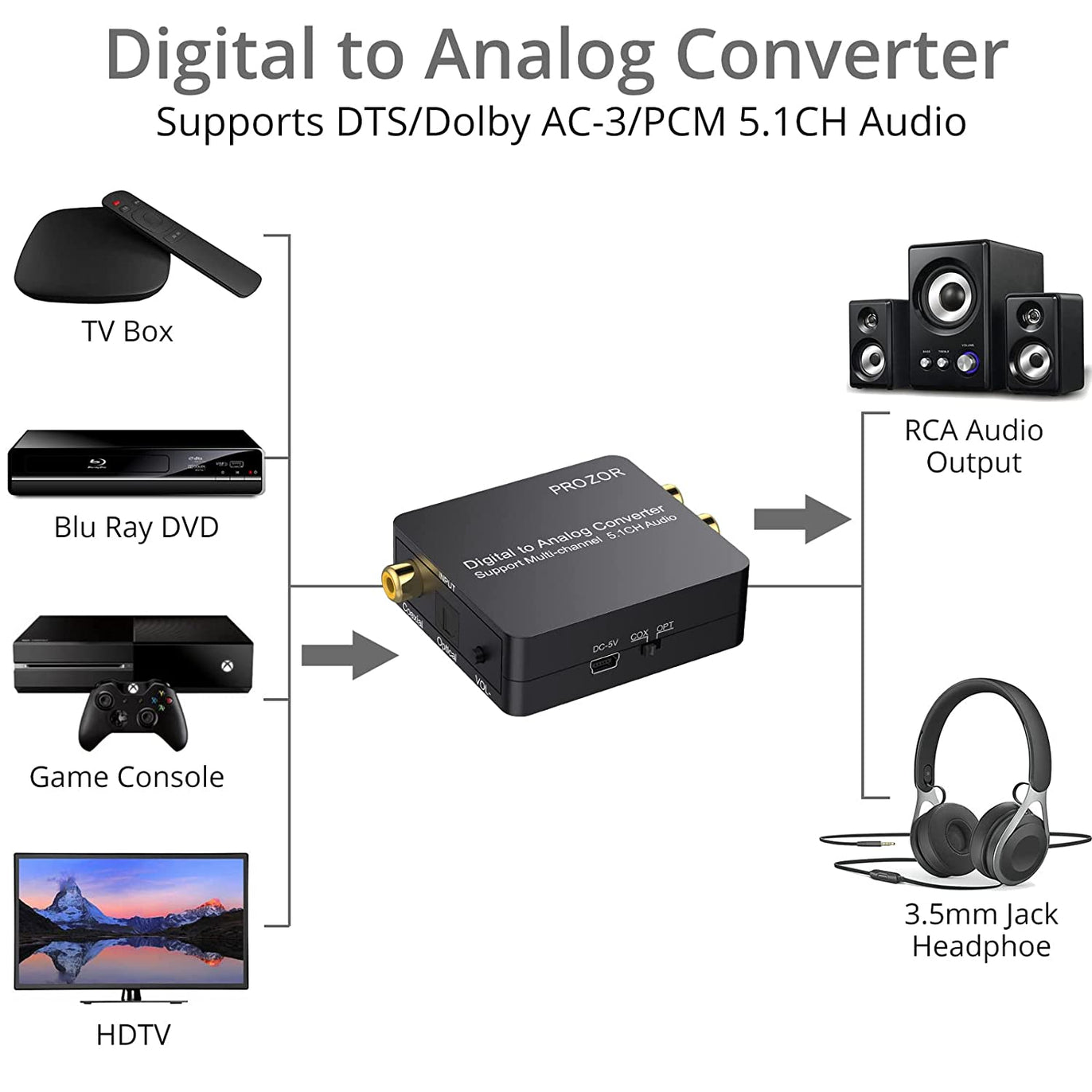

Widely used with TV, computer, set-top box, PS4, XBOX and other equipment to expand the lossless sound system
No Noise:
Input coaxial port and output R/L port, good contact without noise

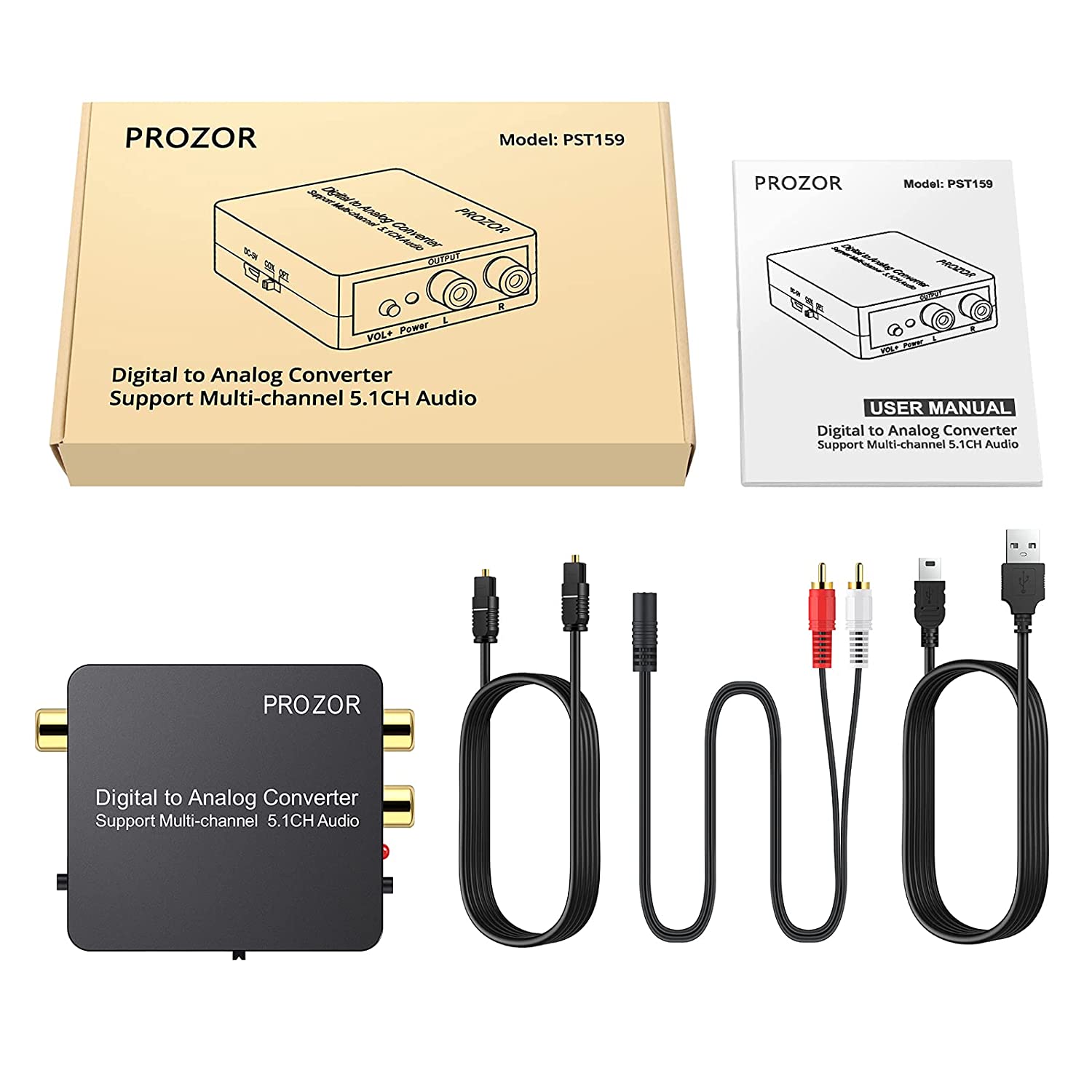

Package:
1x Main unit(Digital to Analog Audio Converter With DTS/Dolby Decoder)
1xMini USB power Cable
1xUser manual
1xOptical Cable 4.0
1x3.5mm Jack to 2x RCA Plugs
