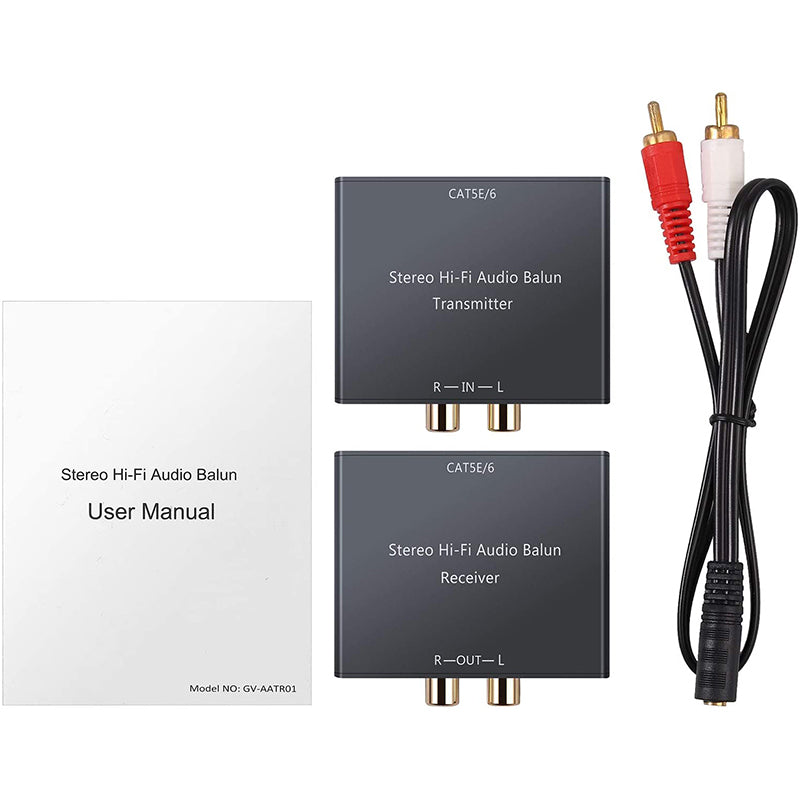

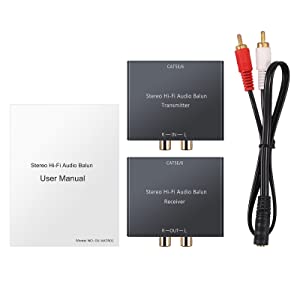

PROZOR Audio Balun Analog Audio Extender Stereo RCA to Stereo
prozor store
Delivery and Returns
1. US,UK,AU,DE,FR,IT,ES Free shipping over $50.
2. All products are sold 100% authentic.
3. 48 hours delivery, 5-10 working days can be delivered.
4. Free 30-day return and 18-month warranty.
5. Shipping area supported :US,UK,AU,CA,DE,AT,BE,CZ,FR,LU,NL,PL,DK,IT,ES
6. Note: If you need to purchase multiple pieces or cooperate, please contact us in advance.
Product Description
Specification:

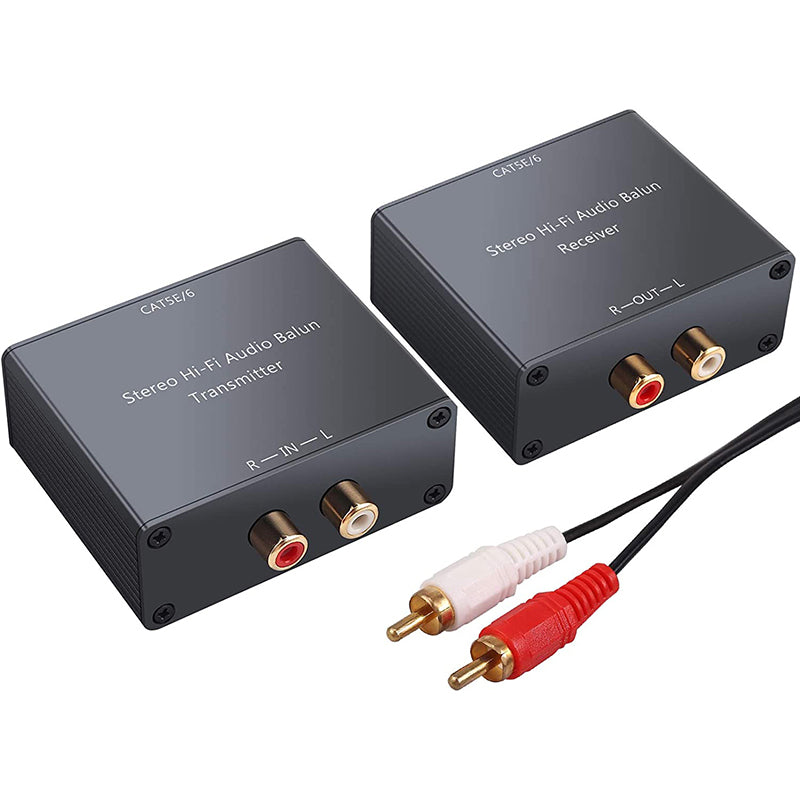

Product Name: Stereo Hi-Fi Audio Balun

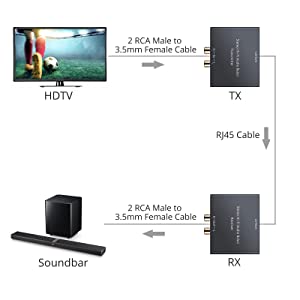

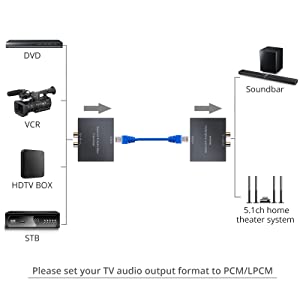

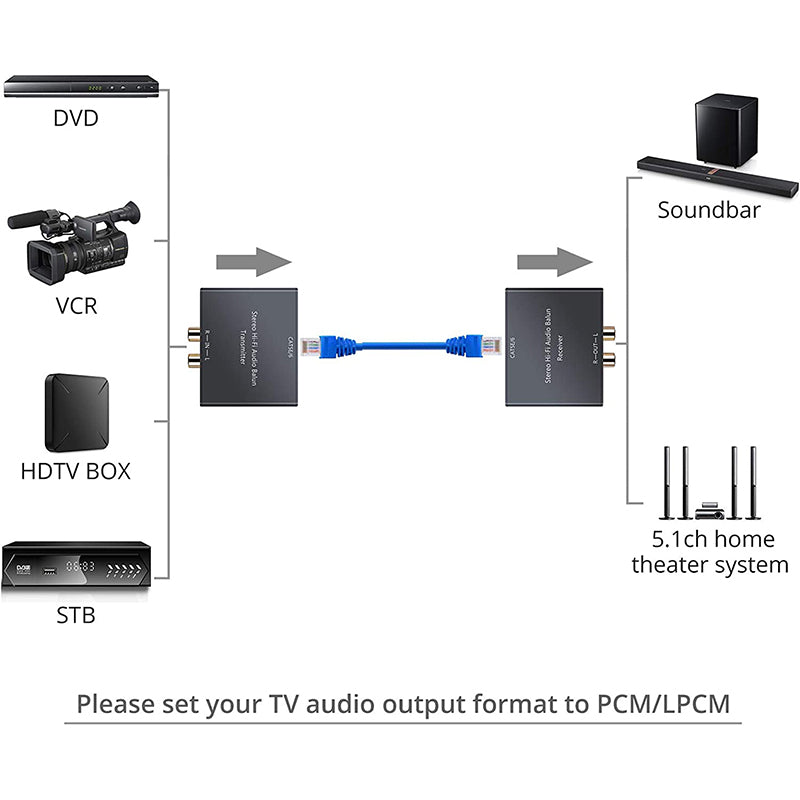

Devices: DVD players, satellite receivers, MPEG players,laptops, Hi-Fi stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer and other line level audio equipment
3dB Bandwidth: 20 Hz to 20 KHz over the distancerange
Maximum Input: 2V RMS
Insertion Loss per balun pair: Less than 3 dB overthe frequency range.
Common Mode Rejection: Greater than 60 dB @ 1 KHz; Greaterthan 40 dB over the frequency and distance range
THD: Maximum 0.007% @ 1 KHz over distance range
Audio Source Impedance: 100 ohms maximum
Audio Receiver Impedance: 10k ohms minimum
Max. Distance – Cat5e/6 UTP: 3250ft (1,000m)
Temperature: Operating: 0° to 55°C; Storage: -20° to85°C
Humidity: Up to 95% non-condensing
Enclosure: Aluminum alloy

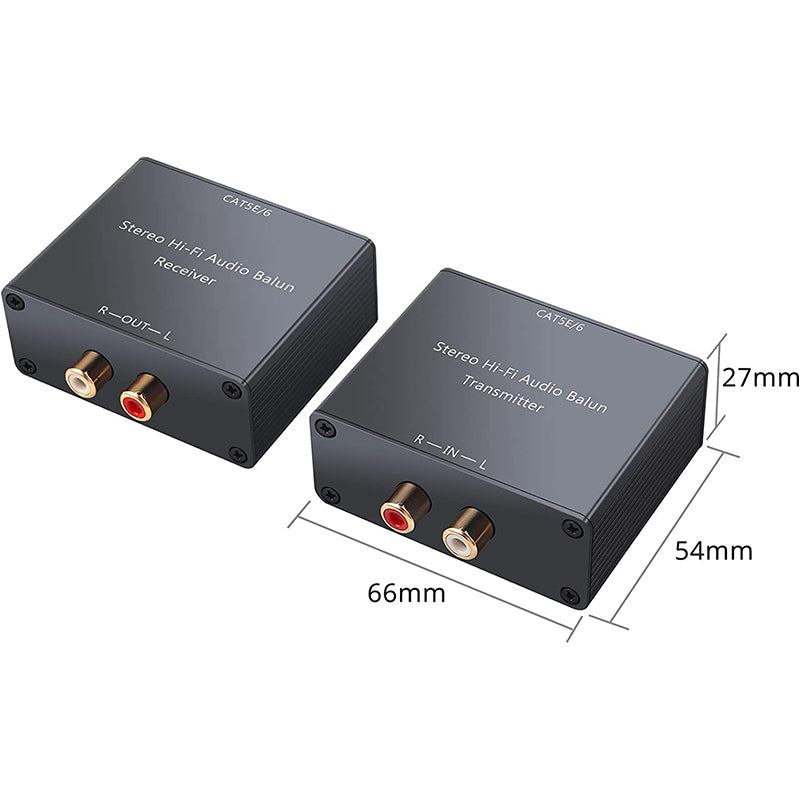

Dimensions(packaging): 64(L)x52(W)x23(H)mm
Weight(packaging): Transmitter:107g Receiver:107g
Notes:
Usually use the length of 1000 foot--1650 foot.
It can be up to 3280 foot, but there will be slightcrosstalk.
Quick Setup Guide:

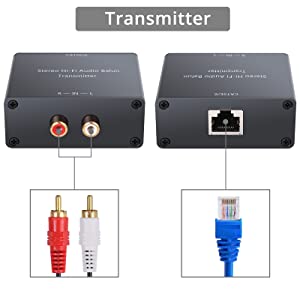

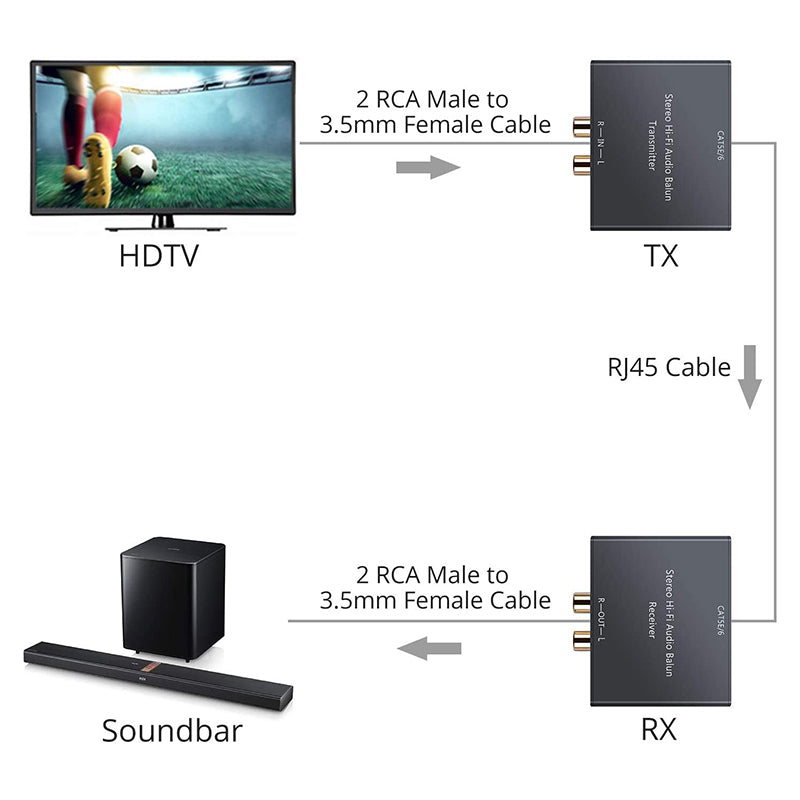

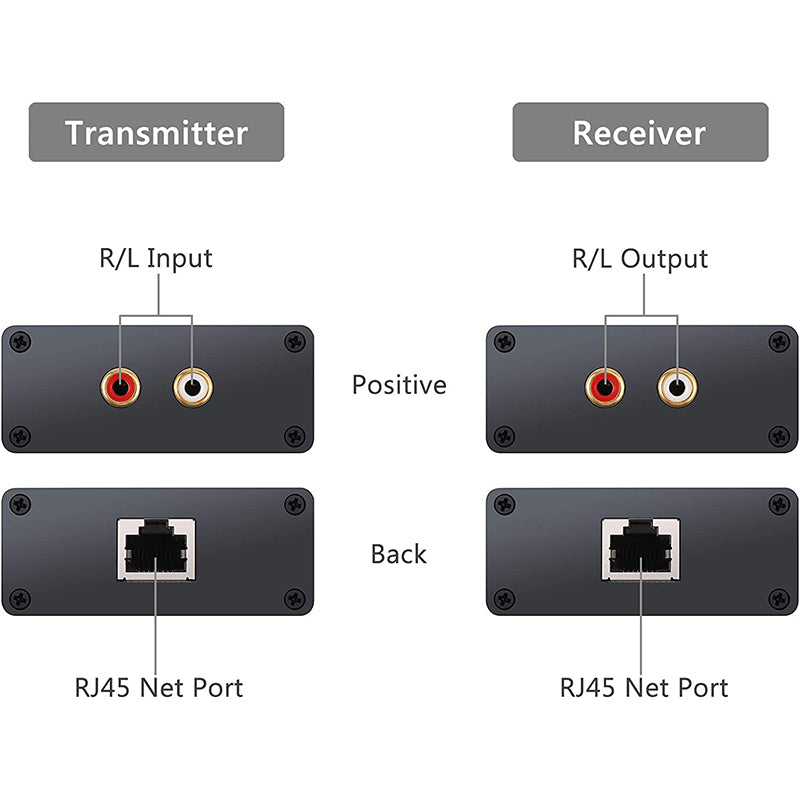

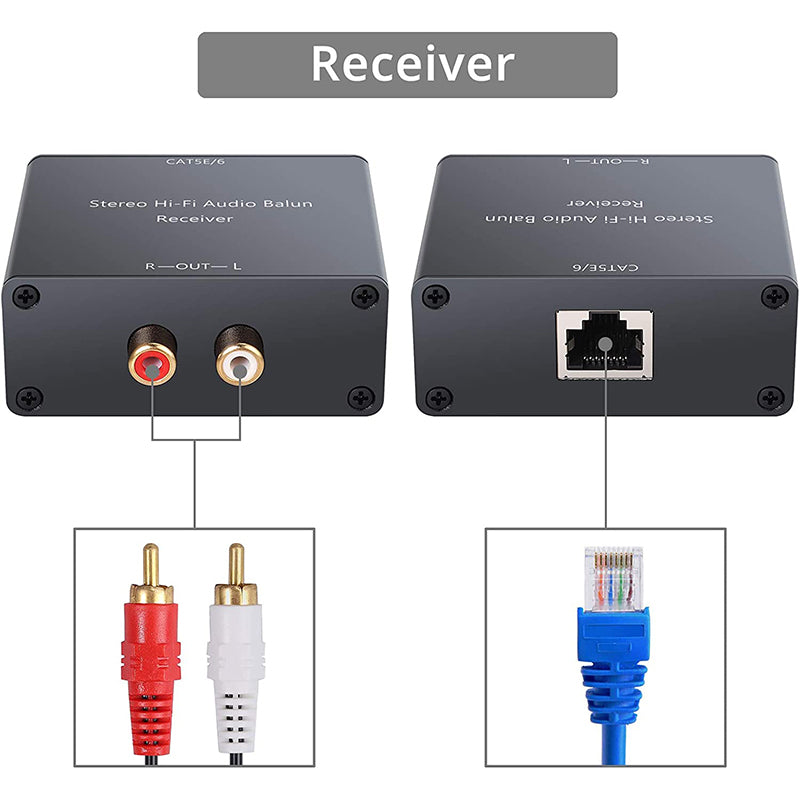

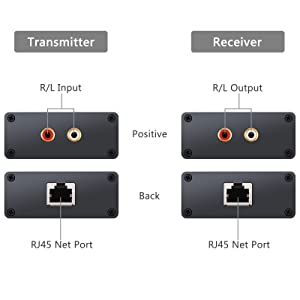

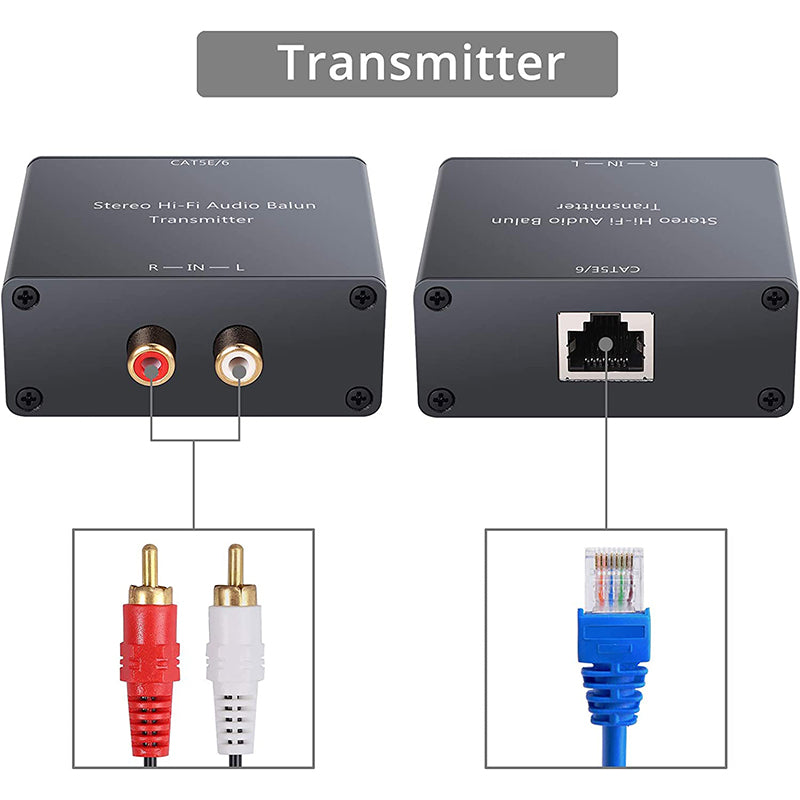

Plug the Left (White) and Right (Red) stereo audio RCA connectors of the transmission Balun into the HI-FI audio output of thesource component, Plug the Left (White) and Right (Red) RCA connectors from theReceive Balun into your desired input component. Insert the CAT5 cable intoboth ends of the Baluns. You may use standard EIA 568A/B Termination.
